For model R707, Roberts Radio Co.Ltd., East Molesey, Surrey, UK:

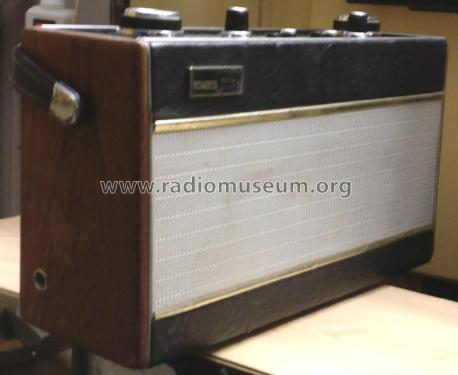

A 1971 Roberts R707 which has an enameled metal badge.

Country:  Great Britain (UK)
Manufacturer / Brand:  Roberts Radio Co.Ltd., East Molesey, Surrey, UK
Year: 1969–1977 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 12: BF195 BF200 AF114 AF115 AF116 BC148 BC148 BC149 BC158 OC71 AC187 AC188
Main principle Superheterodyne (common); ZF/IF 470/10700 kHz
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Dry Batteries / 2 x 6 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 1.5 W (unknown quality)
from Radiomuseum.org Model: R707 - Roberts Radio Co.Ltd., East
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 12.7 x 7.25 x 4.38 inch / 323 x 184 x 111 mm
Notes Black leathercloth covered wooden case. Elliptical loudspeaker 7 x 4 inch. Contains two Mullard modules, the LP1179/2 FM module (BF195 and BF200 transistors) and the LP1164/1 IF module (AF114, AF115 and AF116 transistors).
Net weight (2.2 lb = 1 kg) 2.9 kg / 6 lb 6.2 oz (6.388 lb)
Price in first year of sale 36.00 GBP
Literature/Schematics (1) -- Original-techn. papers.
Literature/Schematics (2) ERT Service chart 1713

Model page created by Howard Craven. See "Data change" for further contributors.
