• Country
• Soviet Union

• Manufacturer / Brand
• Murom RIP Works

• Year
• 1959

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 79921

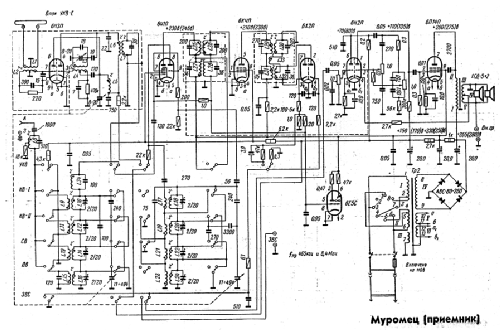

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 6Н3П 6И1П 6К4П 6Х2П 6Е5С 6Н2П 6П14П

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)     4 FM circuit(s)

• Wave bands
• Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110, 127, 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 1 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

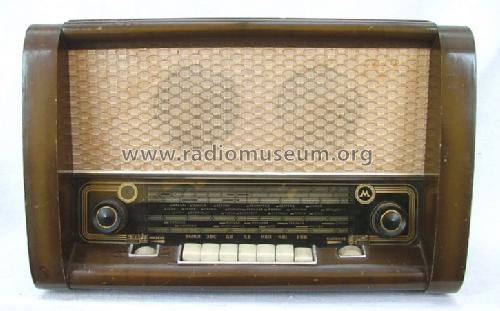

• Model: Muromec {Муромец} - Murom RIP Works

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 510 x 326 x 300 mm / 20.1 x 12.8 x 11.8 inch

• Notes
• FM 64,5-73,5 MHz.
  Typical radio set at this time in USSR. Manufaktured in many SU plants - same schematic, similar cases, divers only model names.

• Net weight (2.2 lb = 1 kg)
• 11.5 kg / 25 lb 5.3 oz (25.33 lb)

• Mentioned in
• E.A.Levitin, "Radio sets", Moscow 1967

• Author
• Model page created by Zenonas Langaitis. See "Data change" for further contributors.
