A262

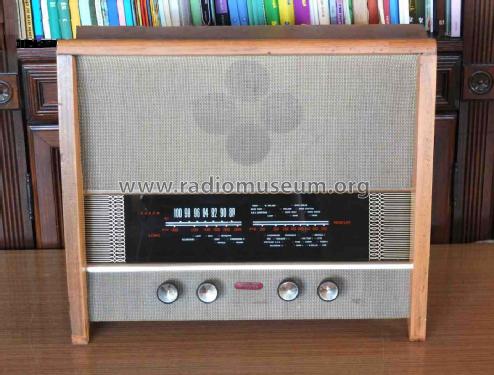

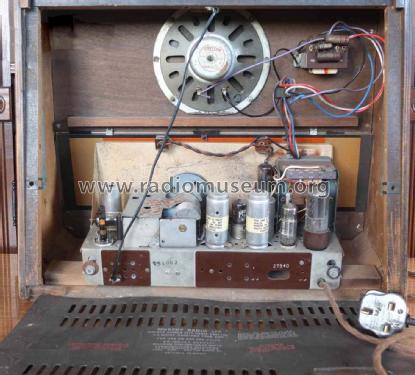

A262; Murphy Radio Ltd.; (ID = 351379) Radio

A262; Murphy Radio Ltd.; (ID = 558433) Radio

A262; Murphy Radio Ltd.; (ID = 558434) Radio

A262; Murphy Radio Ltd.; (ID = 558435) Radio

A262; Murphy Radio Ltd.; (ID = 558436) Radio

A262; Murphy Radio Ltd.; (ID = 558437) Radio

A262; Murphy Radio Ltd.; (ID = 558438) Radio
A262; Murphy Radio Ltd.; (ID = 297795) Radio A262; Murphy Radio Ltd.; (ID = 297796) Radio
A262; Murphy Radio Ltd.; (ID = 297797) Radio A262; Murphy Radio Ltd.; (ID = 1758935) Radio
A262; Murphy Radio Ltd.; (ID = 1914845) Radio A262; Murphy Radio Ltd.; (ID = 1914846) Radio
A262; Murphy Radio Ltd.; (ID = 1914847) Radio A262; Murphy Radio Ltd.; (ID = 1914848) Radio
A262; Murphy Radio Ltd.; (ID = 1914850) Radio
Use red slider bar for more.

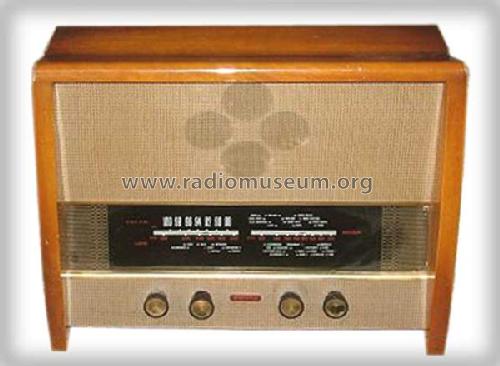

A262; Murphy Radio Ltd.; (ID = 297795) Radio
Murphy Radio Ltd.;: A262 [Radio] ID = 297795 600x440
Select picture or schematic to display from thumbnails on the right and click for download.
For model A262, Murphy Radio Ltd.; Welwyn Garden City:
Ebay Nr. 110091028002 Bild bearbeitet.

Country:  Great Britain (UK)
Manufacturer / Brand:  Murphy Radio Ltd.; Welwyn Garden City
Year: 1955 Category: Broadcast Receiver - or past WW2 Tuner

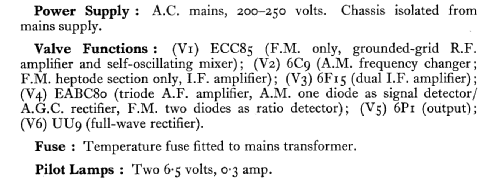

Valves / Tubes 6: ECC85 6C9_UK 6F15 EABC80 6P1 UU9
Main principle Superheterodyne (common); ZF/IF 470/10700 kHz
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 200-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 inch = 16.5 cm
Power out
from Radiomuseum.org Model: A262 - Murphy Radio Ltd.; Welwyn
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 19 x 16.5 x 8.75 inch / 483 x 419 x 222 mm
Notes Released in July 1955 price £31 0s 0d
Net weight (2.2 lb = 1 kg) 9.3 kg / 20 lb 7.8 oz (20.485 lb)
Price in first year of sale 31.00 GBP

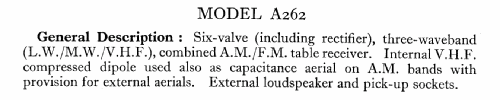

Mentioned in -- Original-techn. papers.

Model page created by Peter Hoddow. See "Data change" for further contributors.



All listed radios etc. from Murphy Radio Ltd.; Welwyn Garden City
Here you find 326 models, 229 with images and 206 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
