A474

A474; Murphy Radio Ltd.; (ID = 584732) Radio

A474; Murphy Radio Ltd.; (ID = 584733) Radio
A474; Murphy Radio Ltd.; (ID = 1195025) Radio
Use red slider bar for more.

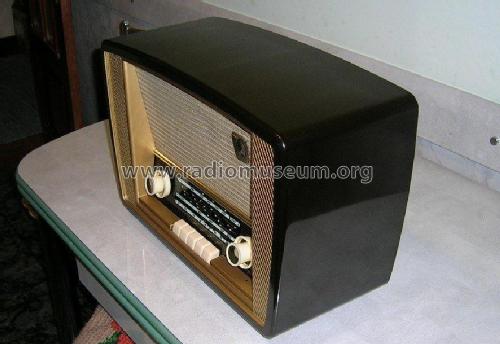

A474; Murphy Radio Ltd.; (ID = 1195025) Radio
Murphy Radio Ltd.;: A474 [Radio] ID = 1195025 886x611
Select picture or schematic to display from thumbnails on the right and click for download.
For model A474, Murphy Radio Ltd.; Welwyn Garden City

Country:  Great Britain (UK)
Manufacturer / Brand:  Murphy Radio Ltd.; Welwyn Garden City
Year: 1958–1960 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: 6L12 6F18 6C12 6F18 EM85 6LD12 6P15 EZ80
Main principle Superheterodyne (common); ZF/IF 470/10700 kHz
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 200-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: A474 - Murphy Radio Ltd.; Welwyn
Material Bakelite case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 18 x 12.5 x 8 inch / 457 x 318 x 203 mm
Notes Elliptical loudspeaker 10 x 6 inch.
Net weight (2.2 lb = 1 kg) 15 lb 0 oz (15 lb) / 6.810 kg
Price in first year of sale 28.00 GBP
Mentioned in -- Original-techn. papers.
Literature/Schematics (1) - - Manufacturers Literature

Model page created by Mario Coelho. See "Data change" for further contributors.
