A482

A482; Murphy Radio Ltd.; (ID = 584767) Radio

A482; Murphy Radio Ltd.; (ID = 584769) Radio

A482; Murphy Radio Ltd.; (ID = 584770) Radio

A482; Murphy Radio Ltd.; (ID = 584771) Radio
A482; Murphy Radio Ltd.; (ID = 2148125) Radio A482; Murphy Radio Ltd.; (ID = 2148126) Radio

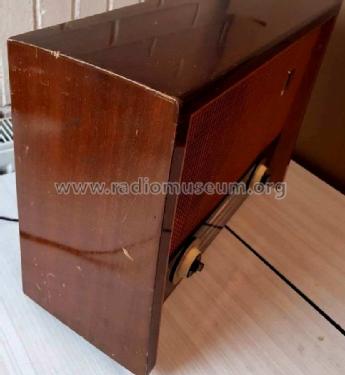

A482; Murphy Radio Ltd.; (ID = 2148127) Radio A482; Murphy Radio Ltd.; (ID = 2148128) Radio
Use red slider bar for more.
A482; Murphy Radio Ltd.; (ID = 2148125) Radio
Murphy Radio Ltd.;: A482 [Radio] ID = 2148125 900x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model A482, Murphy Radio Ltd.; Welwyn Garden City:
Ebay UK auction item no 182739311355 seller reusewise

Country:  Great Britain (UK)
Manufacturer / Brand:  Murphy Radio Ltd.; Welwyn Garden City
Year: 1958–1960 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 6L12 6C12 6F18 6LD12 EM85 6P15 EZ80
Main principle Superheterodyne (common); ZF/IF 470/10700 kHz
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 200-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 inch = 16.5 cm
Power out
from Radiomuseum.org Model: A482 - Murphy Radio Ltd.; Welwyn
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 19 x 14 x 7.75 inch / 483 x 356 x 197 mm
Net weight (2.2 lb = 1 kg) 7 kg / 15 lb 6.7 oz (15.419 lb)
Price in first year of sale 28.00 GBP
Mentioned in -- Original-techn. papers.

Model page created by Mario Coelho. See "Data change" for further contributors.
