A492R

A492R; Murphy Radio Ltd.; (ID = 365583) Radio

A492R; Murphy Radio Ltd.; (ID = 365584) Radio

A492R; Murphy Radio Ltd.; (ID = 584782) Radio

A492R; Murphy Radio Ltd.; (ID = 584783) Radio

A492R; Murphy Radio Ltd.; (ID = 584784) Radio
Use red slider bar for more.
A492R; Murphy Radio Ltd.; (ID = 365583) Radio

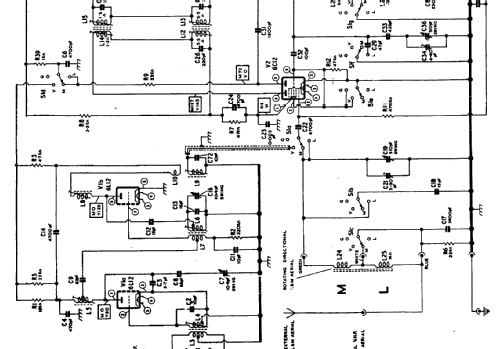

Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Great Britain (UK)
Manufacturer / Brand:  Murphy Radio Ltd.; Welwyn Garden City
Year: 1958–1960 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 6L12 6C12 6F18 6LD12 6L13 6P15 6P15
Main principle Superheterodyne (common); ZF/IF 470/10700 kHz
Wave bands Broadcast, Long Wave and FM or UHF.
Details Record Player (perh.Changer)
Power type and voltage Alternating Current supply (AC) / 200-250 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: A492R - Murphy Radio Ltd.; Welwyn
Material Wooden case
Shape Console, Highboy (legs > 50 %).
Dimensions (WHD) 26.25 x 28 x 20.5 inch / 667 x 711 x 521 mm
Notes Collaro Studio or Garrard RC209 automatic record changer with Ronette S105 cartridge. Both elliptical loudspeakers 8 x 5 inch. Metal rectifier.
Net weight (2.2 lb = 1 kg) 59 lb 0 oz (59 lb) / 26.786 kg
Price in first year of sale 58.00 GBP
Mentioned in -- Original-techn. papers.

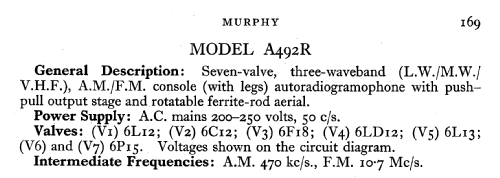

Literature/Schematics (1) - - Manufacturers Literature

Model page created by Mario Coelho. See "Data change" for further contributors.
