A682SR

A682SR; Murphy Radio Ltd.; (ID = 727065) Radio

A682SR; Murphy Radio Ltd.; (ID = 727066) Radio
A682SR; Murphy Radio Ltd.; (ID = 1951161) Radio A682SR; Murphy Radio Ltd.; (ID = 1951164) Radio
A682SR; Murphy Radio Ltd.; (ID = 1951165) Radio
Use red slider bar for more.
A682SR; Murphy Radio Ltd.; (ID = 1951161) Radio
Murphy Radio Ltd.;: A682SR [Radio] ID = 1951161 1024x670
Select picture or schematic to display from thumbnails on the right and click for download.
For model A682SR, Murphy Radio Ltd.; Welwyn Garden City:

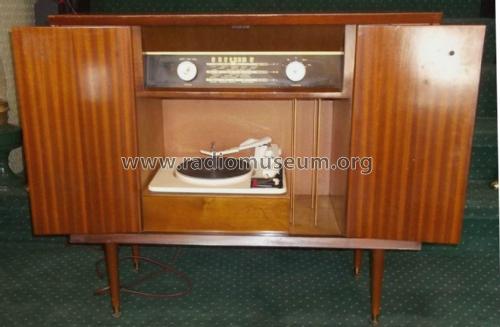

A Murphy A682SR radiogram, Ebay item no. 161961471722 seller viva_hooky_street

Country:  Great Britain (UK)
Manufacturer / Brand:  Murphy Radio Ltd.; Welwyn Garden City
Year: 1963 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECC85 ECH81 EF89 EABC80 ECL86 ECL86 EZ81
Main principle Superheterodyne (common); ZF/IF 470/10700 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)     8 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 200-250 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: A682SR - Murphy Radio Ltd.; Welwyn
Notes Stereo radiogram (radio is mono). Fitted with Garrard type Autoslim changer unit.

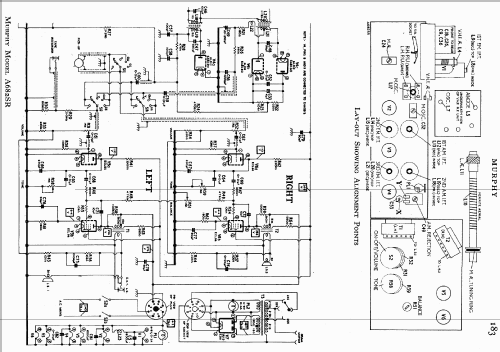

Source of data -- Schematic
Literature/Schematics (1) Radio And Television Servicing books (R&TVS)

Model page created by Keith Staines. See "Data change" for further contributors.
