B801; Murphy Radio Ltd.; (ID = 221385) Radio
Murphy Radio Ltd.;: B801 [Radio] ID = 221385 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model B801, Murphy Radio Ltd.; Welwyn Garden City:

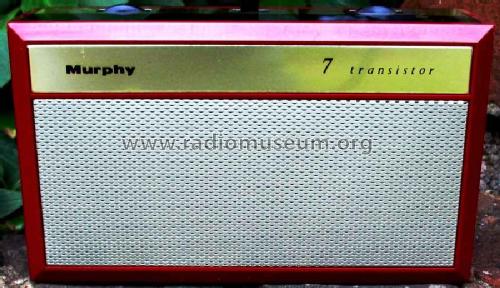

My little red Murphy B801 MW/LW pocket radio with its black leather carry case ca 1963. Both the Murphy and Bush radio companies were owned by the Rank Organisation at this time and the Bush TR114 is the very same radio but in a blue case with Bush badges and usually a tan carry case.

Country:  Great Britain (UK)
Manufacturer / Brand:  Murphy Radio Ltd.; Welwyn Garden City
Year: 1963 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: AF117 AF117 AF117 OC71 OC81D OC81 OC81
Main principle Superheterodyne (common); ZF/IF 470 kHz
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3 inch = 7.6 cm
Power out 0.2 W (unknown quality)
from Radiomuseum.org Model: B801 - Murphy Radio Ltd.; Welwyn
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 154 x 89 x 51 mm / 6.1 x 3.5 x 2 inch
Notes Released June 1963 price £11 4s 9d plus purchase tax.
Net weight (2.2 lb = 1 kg) 0.5 kg / 1 lb 1.6 oz (1.101 lb)
Price in first year of sale 14.00 GBP

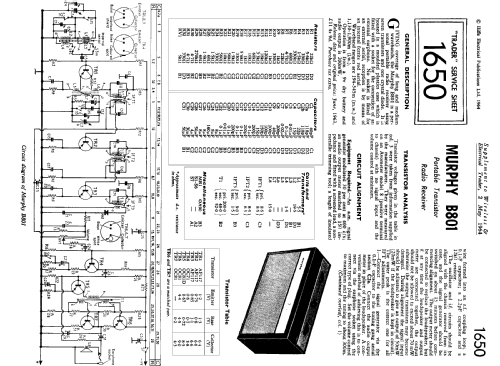

Literature/Schematics (1) -- Original-techn. papers. (Trader sheet 1650)

Model page created by Howard Craven. See "Data change" for further contributors.
