For model Transistor 8 B815, Murphy Radio Ltd.; Welwyn Garden City:

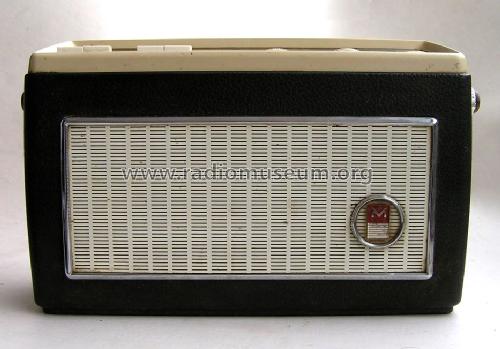

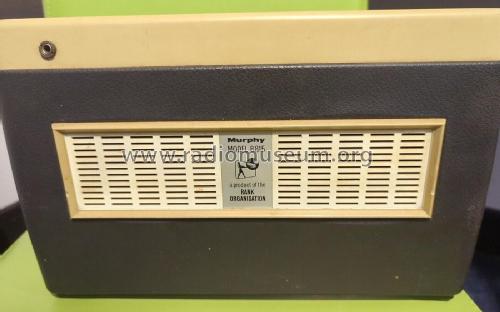

My 1966 Murphy B815 MW/LW/BS (Bandspread 190 -210 metres MW) 8 transistor radio which has been fully restored, which entailed a good clean and repairs to the grille, and replacing one of the AF117 germanium transistors which are notoriously unreliable. This one also has the pirate radio station 'Caroline' on the dial.

Country:  Great Britain (UK)
Manufacturer / Brand:  Murphy Radio Ltd.; Welwyn Garden City
Year: 1965 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8: AF117 AF117 AF117 AF117 AC127 AC127 OC81 OC81
Main principle Superheterodyne (common); ZF/IF 470 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / PP9: 2 x 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 8 inch = 20.3 cm
Power out
from Radiomuseum.org Model: Transistor 8 B815 - Murphy Radio Ltd.; Welwyn
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 12.5 x 7.5 x 4 inch / 318 x 191 x 102 mm
Notes

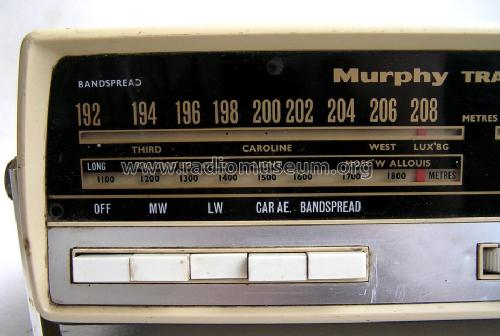

A battery powered portable eight transistor radio covering the MW (187-565 metres or 187-570 metres) and LW (1070-1900 metres) bands, and Bandspread covering the high frequency end of MW (192-210 metres).  When the 'CAR AE.' push button is pressed down, separate screened aerial tuning coils are used with a car aerial. Sockets for car aerial and earphone. Elliptical loudspeaker 8 x 5 inch. Price in 1966 £14 9s 7d plus purchase tax.

The later Murphy B815A is similar, but with minor circuit changes including different output transistors and is medium grey in colour.



Net weight (2.2 lb = 1 kg) 1.9 kg / 4 lb 3 oz (4.185 lb)
Price in first year of sale 18.00 GBP
Source of data - - Data from my own collection

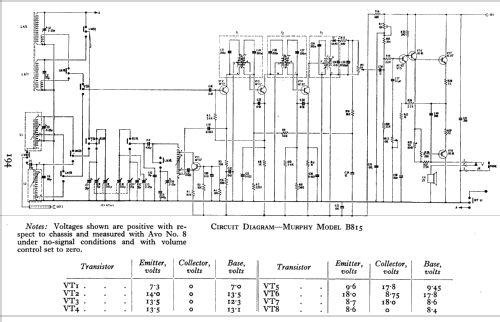

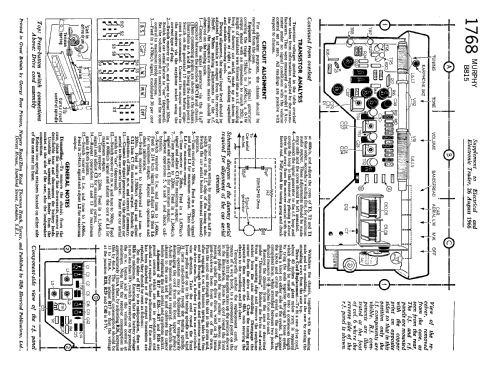

Literature/Schematics (1) Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (1768 dated 26 August 1966)
Literature/Schematics (2) Radio And Television Servicing books (R&TVS)

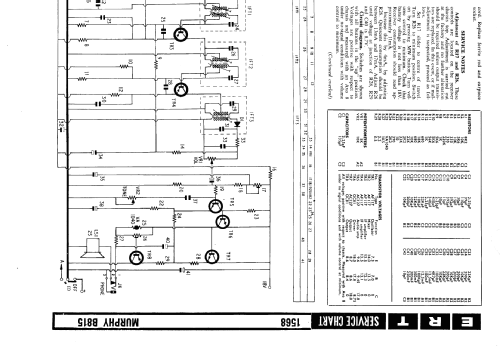

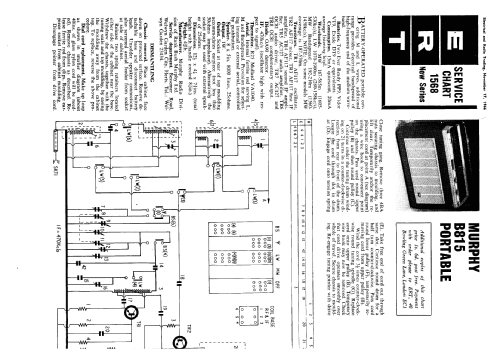

Literature/Schematics (3) ERT Service Chart 1568 dated November 17 1966

Model page created by Howard Craven. See "Data change" for further contributors.
