• Country
• Great Britain (UK)

• Manufacturer / Brand
• Murphy Radio Ltd.; Welwyn Garden City

• Year
• 1957 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 160937

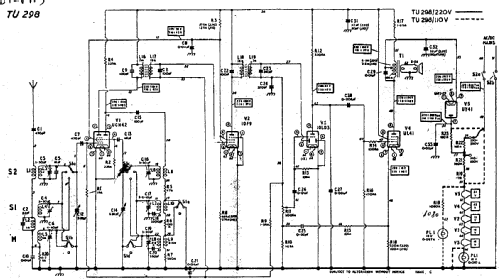

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• UCH42 10F9 10LD3 UL41 UY41

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• AC/DC-set / 190-250 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 11.5 cm = 4.5 inch

• Material
• Bakelite case

• from Radiomuseum.org
• Model: TU 298-220 - Murphy Radio Ltd.; Welwyn

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 280 x 200 x 140 mm / 11 x 7.9 x 5.5 inch

• Net weight (2.2 lb = 1 kg)
• 2 kg / 4 lb 6.5 oz (4.405 lb)

• Author
• Model page created by Nigel Hulse. See "Data change" for further contributors.
