Nachrichtenelektroni: "Faustkeil" G1000 [Radio] ID = 74496 747x700

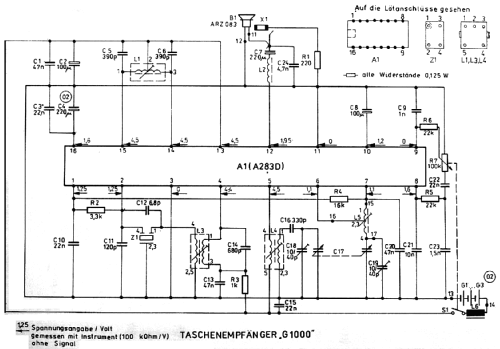

Select picture or schematic to display from thumbnails on the right and click for download.
For model "Faustkeil" G1000, Nachrichtenelektronik Greifswald, VEB (NEG); Greifswald (Ostd.)

Country:  Germany
Manufacturer / Brand:  Nachrichtenelektronik Greifswald, VEB (NEG); Greifswald (Ostd.)
Year: 1982–1985 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present. A283D
Main principle Superheterodyne (common); ZF/IF 455 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 4,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 0.15 W (unknown quality)
from Radiomuseum.org Model: "Faustkeil" G1000 - Nachrichtenelektronik
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 69 x 155 x 26 mm / 2.7 x 6.1 x 1 inch
Notes

Piezo-Filter, verschiedene Farben; Spitzname: Faustkeil.



Net weight (2.2 lb = 1 kg) 0.2 kg / 0 lb 7 oz (0.441 lb)
Price in first year of sale 99.00 DM
Collectors' prices
Source of data Radiokatalog Band 2, Ernst Erb
Mentioned in -- Original-techn. papers. (Hein, Das Kofferradio in der DDR)

Model page created by Wolfgang Eckardt. See "Data change" for further contributors.



All listed radios etc. from Nachrichtenelektronik Greifswald, VEB (NEG); Greifswald (Ostd.)
Here you find 4 models, 4 with images and 4 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
