• Country
• Canada

• Manufacturer / Brand
• NAD, New Acoustic Dimension; Ontario

• Year
• 1976

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 121488

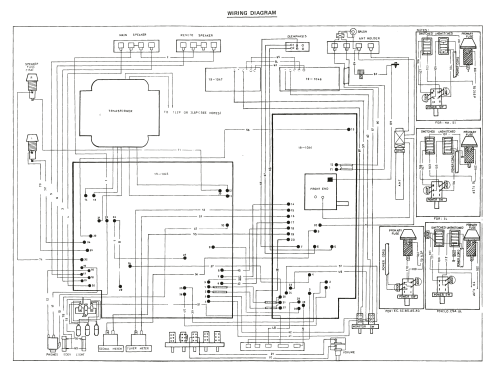

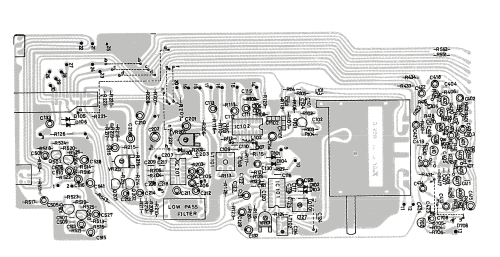

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 117; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 60 W (max.)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Stereophonic Receiver 7030 - NAD, New Acoustic Dimension;

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 450 x 140 x 300 mm / 17.7 x 5.5 x 11.8 inch

• Notes

• NAD AM/FM Stereo Receiver Model 7030.
  Continuous Power Output 2x 30 Watts into 8 Ohms
  THD 0,09%
  Inputs: Phono, AUX, Tape1, Tape2
  Tape Monitor
  FM Deemphasis
  Signal- & Tuning-Meter
  Lo-Filter
  Hi-Filter
  Loudness
  Bass- & Treble Control
  Power Consumption150 Watts
  Made by NAD, Taiwan.


• Net weight (2.2 lb = 1 kg)
• 10 kg / 22 lb 0.4 oz (22.026 lb)

• Source of data
• - - Data from my own collection

• Mentioned in
• - - Manufacturers Literature (Service- & Instruction Manual)

• Author
• Model page created by Peter Böhm. See "Data change" for further contributors.
