AM FM Stereo Tuner Model 100

AM FM Stereo Tuner Model 100; NAD, New Acoustic (ID = 2118374) Radio
Use red slider bar for more.
AM FM Stereo Tuner Model 100; NAD, New Acoustic (ID = 2118374) Radio
NAD, New Acoustic: AM FM Stereo Tuner Model 100 [Radio] ID = 2118374 1400x1433
Select picture or schematic to display from thumbnails on the right and click for download.
For model AM FM Stereo Tuner Model 100, NAD, New Acoustic Dimension; Ontario:

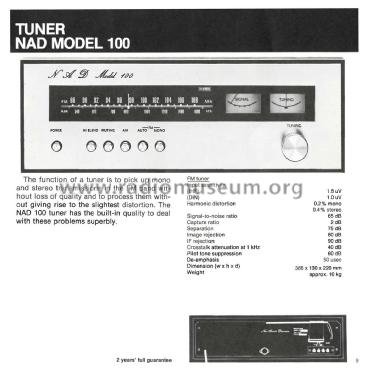

Nad - 1975-Catalog-Seite-09

Country:  Canada
Manufacturer / Brand:  NAD, New Acoustic Dimension; Ontario
Year: 1975 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superhet with RF-stage
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: AM FM Stereo Tuner Model 100 - NAD, New Acoustic Dimension;
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 386 x 130 x 220 mm / 15.2 x 5.1 x 8.7 inch
Notes

NAD AM-FM Stereo Tuner Model 100.
Signal- and Tuning Meter
HI-Blend
Muting

Net weight (2.2 lb = 1 kg) 10 kg / 22 lb 0.4 oz (22.026 lb)
Mentioned in -- Original prospect or advert (NAD Katalog 1975 - deutsch - Seite 9)

Model page created by Franz Scharner. See "Data change" for further contributors.
