AM/FM Stereo Receiver 7080

NAD, New Acoustic Dimension; Ontario

Data
Forum
Pictures
Collections

  • Year
  • 1982 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 285067

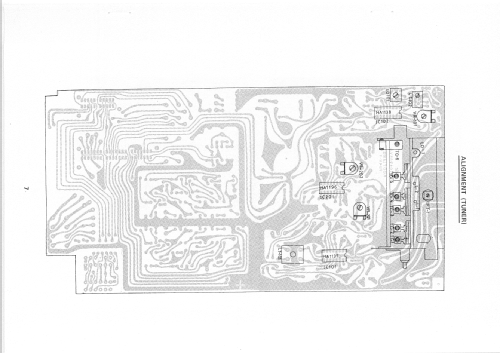

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Hi-Fi equipment
  • Power type and voltage
  • Alternating Current supply (AC) / 110-120 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 180 W (undistorted)
  • Material
  • Metal case
  • from Radiomuseum.org

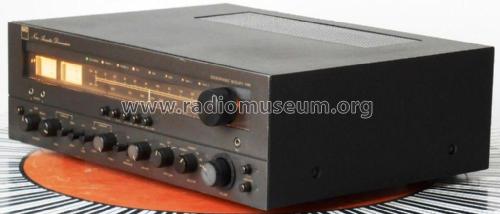

  • Model: AM/FM Stereo Receiver 7080 - NAD, New Acoustic Dimension;
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 19.6 x 6 x 14 inch / 498 x 152 x 356 mm
  • Notes

  • NAD AM/FM Stereo Receiver Model 7080.
    2x 90 Watts RMS into 8 Ohms 20 - 20000Hz, THD <0,03%
    Frequency Respone Range +/-3 dB 5 - 50000Hz
    Bass Control, range at 50 Hz +/-11 and +/-13dB
    Treble Control, range at 10kHz +/-6 and +/-9dB
    Infrasonic and High Filter
    Power Consumption:
    80 Watts Out - 400VA


  • Net weight (2.2 lb = 1 kg)
  • 17.5 kg / 38 lb 8.7 oz (38.546 lb)
  • Mentioned in
  • - - Manufacturers Literature (Service Manual)
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
