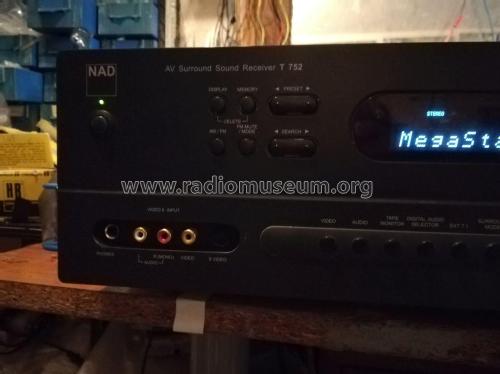

Audio Video Surround Sound Receiver T752
NAD, New Acoustic Dimension; Ontario
- Country
- Canada
- Manufacturer / Brand
- NAD, New Acoustic Dimension; Ontario
- Year
- 2002 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 351860
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 50Hz, 230 Volt
- Material
- Metal case
- from Radiomuseum.org
- Model: Audio Video Surround Sound Receiver T752 - NAD, New Acoustic Dimension;
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 435 x 132 x 350 mm / 17.1 x 5.2 x 13.8 inch
- Notes
-
Tuning range: FM, MW
Power output: 100 watts per channel into 8Ω (stereo)
Surround output: 80W (front), 80W (center), 80W (rear)
Frequency response: 5Hz to 20kHz
Total harmonic distortion: 0.08%
Damping factor: 60
Input sensitivity: 200mV (line)
Signal to noise ratio: 90dB (line)
Digital inputs: coaxial, optical

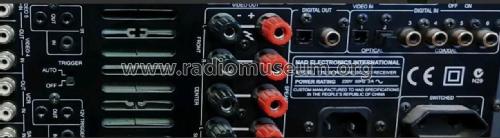

Video Connections: component, composite, SVHS
- Net weight (2.2 lb = 1 kg)
- 16 kg / 35 lb 3.9 oz (35.242 lb)
- Author
- Model page created by Julián Muñoz Lorenzo. See "Data change" for further contributors.
