AV Tuner Preamplifier T163

AV Tuner Preamplifier T163; NAD, New Acoustic (ID = 1956587) Radio AV Tuner Preamplifier T163; NAD, New Acoustic (ID = 1956588) Radio
AV Tuner Preamplifier T163; NAD, New Acoustic (ID = 1956589) Radio AV Tuner Preamplifier T163; NAD, New Acoustic (ID = 1956590) Radio
Use red slider bar for more.
AV Tuner Preamplifier T163; NAD, New Acoustic (ID = 1956587) Radio

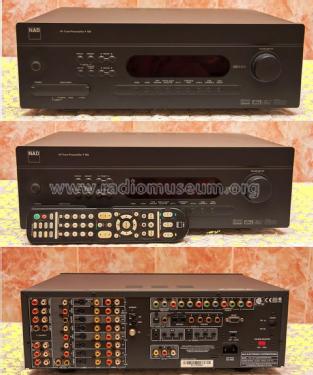

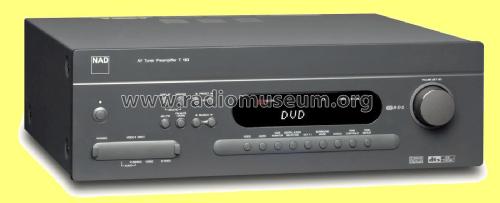

NAD, New Acoustic: AV Tuner Preamplifier T163 [Radio] ID = 1956587 1400x570
Select picture or schematic to display from thumbnails on the right and click for download.
For model AV Tuner Preamplifier T163, NAD, New Acoustic Dimension; Ontario:
Ebay Auction

Country:  Canada
Manufacturer / Brand:  NAD, New Acoustic Dimension; Ontario
Year: 2003 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle PLL, Phase-locked loop
Wave bands Broadcast (BC) and FM or UHF.
Details Radio Control (+Remote Wire etc)
Power type and voltage Alternating Current supply (AC) / 120; 230 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: AV Tuner Preamplifier T163 - NAD, New Acoustic Dimension;
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 435 x 150 x 399 mm / 17.1 x 5.9 x 15.7 inch
Notes

NAD AV Tuner Preamplifier Model T163.
RDS FM/AM Tuner with 30 direct access presets (30-15000Hz)
Pre-Amp Section:
Frequency response: 5Hz to 20kHz
Total harmonic distortion: 0.08%
Input sensitivity: 400mV (line)
Signal to noise ratio: 80dB (line)
Output: 5V (Pre out)
6 Video Inputs all S-Video and Composite
2 TapeLoopsCoponet Video, 3 Inputs and 1 Output HDTV Compatible
Video Format Converter
3 Audio Inputs, 1 Tape Loop
6 Digtal Inputs, 4 Coaxial, 2 TOS Link freely assignable
2 Digital Outputs, 1 Coaxial, 1 TOS Link
7.1 Analogue Input
RS-232 Port
3x 12V Trigger Outputs, 12V Trigger Input
3x IR Outputs, IR Input
Remote Control NAD HTR 2 / ZR 2



Net weight (2.2 lb = 1 kg) 8 kg / 17 lb 9.9 oz (17.621 lb)
Mentioned in Service & Instruction/Owners Manual
Literature/Schematics (1) -- Original prospect or advert (NAD Catalogue - 'Powered by Passion')

Model page created by Franz Scharner. See "Data change" for further contributors.
