Compact Disc Player 5220

Compact Disc Player 5220; NAD, New Acoustic (ID = 1886568) R-Player Compact Disc Player 5220; NAD, New Acoustic (ID = 1886570) R-Player
Compact Disc Player 5220; NAD, New Acoustic (ID = 1886569) R-Player Compact Disc Player 5220; NAD, New Acoustic (ID = 1886571) R-Player
Compact Disc Player 5220; NAD, New Acoustic (ID = 1886572) R-Player Compact Disc Player 5220; NAD, New Acoustic (ID = 1886573) R-Player
Use red slider bar for more.
Compact Disc Player 5220; NAD, New Acoustic (ID = 1886568) R-Player
NAD, New Acoustic: Compact Disc Player 5220 [R-Player] ID = 1886568 1400x433
Select picture or schematic to display from thumbnails on the right and click for download.
For model Compact Disc Player 5220, NAD, New Acoustic Dimension; Ontario:
Ebay Auction

Country:  Canada
Manufacturer / Brand:  NAD, New Acoustic Dimension; Ontario
Year: 1987 ? Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details CD-Player, -Writer, MD, MOD (audio)
Power type and voltage Alternating Current supply (AC) / 120 ; 230 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Compact Disc Player 5220 - NAD, New Acoustic Dimension;
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 340 x 57.5 x 309.5 mm / 13.4 x 2.3 x 12.2 inch
Notes

NAD Frontloading Single Compact Disc Player Model 5220.
5 - 20000Hz +/-0,5dB
Dynamic Range 93 dB
THD 0,004% (1kHz)
Channel Separation 90dB
Output 2V
Fixed Output
Timer Play
Power Consumption 13 Watts.
Remote Control Unit NAD RM-5240 (5240)

Suffix:
A - North Amrica
C - Canada
E - Europe & Others
U - UK
Y - Autralia


Net weight (2.2 lb = 1 kg) 2.9 kg / 6 lb 6.2 oz (6.388 lb)

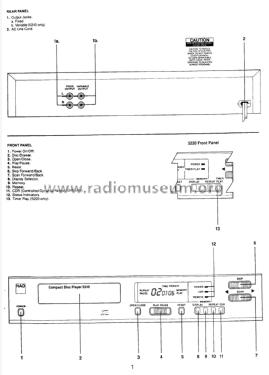

Mentioned in - - Manufacturers Literature (Service Manual)

Model page created by Franz Scharner. See "Data change" for further contributors.
