Compact Disc Player 5325

Compact Disc Player 5325; NAD, New Acoustic (ID = 2381177) R-Player Compact Disc Player 5325; NAD, New Acoustic (ID = 2381178) R-Player
Compact Disc Player 5325; NAD, New Acoustic (ID = 2381179) R-Player Compact Disc Player 5325; NAD, New Acoustic (ID = 2381180) R-Player
Use red slider bar for more.
Compact Disc Player 5325; NAD, New Acoustic (ID = 2381177) R-Player
NAD, New Acoustic: Compact Disc Player 5325 [R-Player] ID = 2381177 1400x290
Select picture or schematic to display from thumbnails on the right and click for download.
For model Compact Disc Player 5325, NAD, New Acoustic Dimension; Ontario:
Sold on archiwum.allegro.pl item 7328245881

Country:  Canada
Manufacturer / Brand:  NAD, New Acoustic Dimension; Ontario
Year: 1990 ? Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details CD-Player, -Writer, MD, MOD (audio); Radio Control (+Remote Wire etc)
Power type and voltage Alternating Current supply (AC) / 120 or 220 or 240 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Compact Disc Player 5325 - NAD, New Acoustic Dimension;
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 420 x 87 x 231 mm / 16.5 x 3.4 x 9.1 inch
Notes

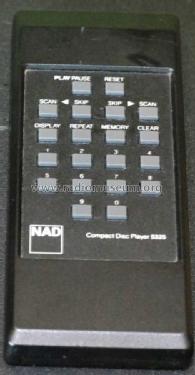

A stereo hi-fi Compact Disc Player with remote control.

Specification
Digital conversion .......: 16 Bit linear 2 channels (Sanyo LC7881)
CD Mechanism ..........: Toshiba TAOHS-JP1
Frequency response:...: 8Hz to 20kHz
Signal to Noise Ratio ..: 96dB (Nominal), 90dB (Limit)
THD ..........................: 0.04% (Nominal), 0.07% (Limit)
Channel separation ....: 80dB (Nominal), 70dB (Limit)
Line output.................: 2V

Versions/Power Requirements
A    :  USA                       120 V AC 60Hz
A1  :  Canada                   120 V AC 60Hz
B    :  UK                         240 V AC 50Hz
B1  :  Australia/NZ            240 V AC 50Hz
C    :  Europe and others   220 V AC 50Hz
C1  :  West Germany        220 V AC 50Hz
C2  :  G.P.M.                    220 V AC 50Hz

Similar to the NAD 5320 Compact Disc Player which does not have remote control.

Made in Japan

Net weight (2.2 lb = 1 kg) 3 kg / 6 lb 9.7 oz (6.608 lb)
Literature/Schematics (1) - - Manufacturers Literature (NAD Service Manual for the 5320 and 5325 Compact Disc Players)

Model page created by Howard Craven. See "Data change" for further contributors.
