Integrated Amplifier 3130

Integrated Amplifier 3130; NAD, New Acoustic (ID = 1803855) Ampl/Mixer Integrated Amplifier 3130; NAD, New Acoustic (ID = 1803858) Ampl/Mixer
Integrated Amplifier 3130; NAD, New Acoustic (ID = 1803861) Ampl/Mixer Integrated Amplifier 3130; NAD, New Acoustic (ID = 1803863) Ampl/Mixer
Integrated Amplifier 3130; NAD, New Acoustic (ID = 1803867) Ampl/Mixer Integrated Amplifier 3130; NAD, New Acoustic (ID = 1803870) Ampl/Mixer

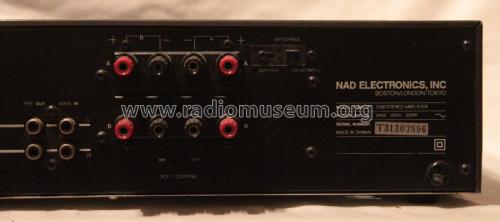

Integrated Amplifier 3130; NAD, New Acoustic (ID = 1803872) Ampl/Mixer Integrated Amplifier 3130; NAD, New Acoustic (ID = 1803875) Ampl/Mixer

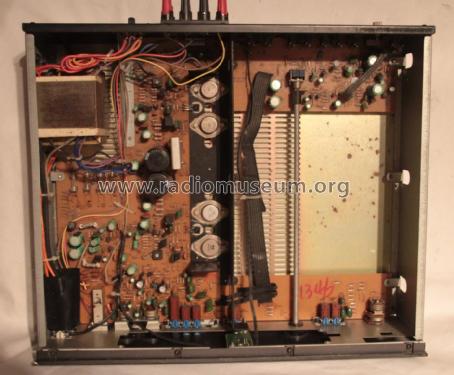

Integrated Amplifier 3130; NAD, New Acoustic (ID = 1803879) Ampl/Mixer Integrated Amplifier 3130; NAD, New Acoustic (ID = 1803880) Ampl/Mixer
Use red slider bar for more.

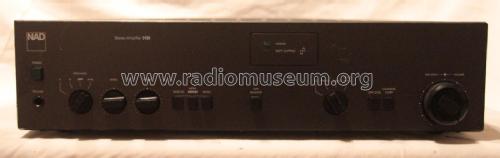

Integrated Amplifier 3130; NAD, New Acoustic (ID = 1803855) Ampl/Mixer
NAD, New Acoustic: Integrated Amplifier 3130 [Ampl/Mixer] ID = 1803855 1400x445
Select picture or schematic to display from thumbnails on the right and click for download.
For model Integrated Amplifier 3130, NAD, New Acoustic Dimension; Ontario

Country:  Canada
Manufacturer / Brand:  NAD, New Acoustic Dimension; Ontario
Year: 1985–1987 Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out 60 W (unknown quality)
from Radiomuseum.org Model: Integrated Amplifier 3130 - NAD, New Acoustic Dimension;
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 420 x 108 x 381 mm / 16.5 x 4.3 x 15 inch
Notes
Power output: 30 watts per channel into 8 Ohms (stereo)

Frequency response: 20Hz to 20kHz

Total harmonic distortion: 0.03%

Input sensitivity: 0.2mV (MC), 2.5mV (MM), 150mV (line)

Signal to noise ratio: 76dB (MC), 76dB (MM), 85dB (line)

Net weight (2.2 lb = 1 kg) 6.9 kg / 15 lb 3.2 oz (15.198 lb)
Source of data -- Original prospect or advert

Model page created by Franz Scharner. See "Data change" for further contributors.
