Stereo Amplifier Model 200

Stereo Amplifier Model 200; NAD, New Acoustic (ID = 1341374) Ampl/Mixer Stereo Amplifier Model 200; NAD, New Acoustic (ID = 1341366) Ampl/Mixer

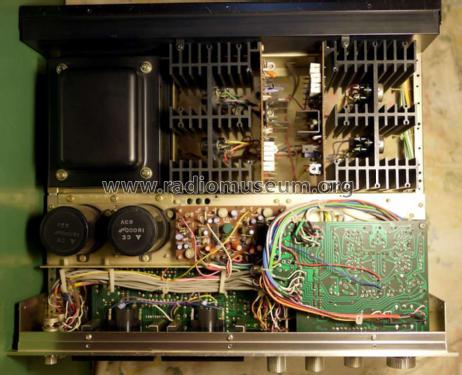

Stereo Amplifier Model 200; NAD, New Acoustic (ID = 1341372) Ampl/Mixer Stereo Amplifier Model 200; NAD, New Acoustic (ID = 1341370) Ampl/Mixer
Stereo Amplifier Model 200; NAD, New Acoustic (ID = 1605158) Ampl/Mixer Stereo Amplifier Model 200; NAD, New Acoustic (ID = 1756178) Ampl/Mixer
Stereo Amplifier Model 200; NAD, New Acoustic (ID = 2118373) Ampl/Mixer
Use red slider bar for more.
Stereo Amplifier Model 200; NAD, New Acoustic (ID = 1341374) Ampl/Mixer
NAD, New Acoustic: Stereo Amplifier Model 200 [Ampl/Mixer] ID = 1341374 930x310
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stereo Amplifier Model 200, NAD, New Acoustic Dimension; Ontario

Country:  Canada
Manufacturer / Brand:  NAD, New Acoustic Dimension; Ontario
Year: 1976 ? Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) 66:
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110; 120; 220; 240 Volt
Loudspeaker - This model requires external speaker(s).
Power out 200 W (unknown quality)
from Radiomuseum.org Model: Stereo Amplifier Model 200 - NAD, New Acoustic Dimension;
Material Wooden case
Shape Book-shelf unit.
Dimensions (WHD) 440 x 165 x 360 mm / 17.3 x 6.5 x 14.2 inch
Notes Stereo Vollverstärker mit 2x 100 Watt Sinus an 8 Ohm.
2 beleuchtete VU-Meter. Integrierter Dolby-Processor, getrennt schaltbarer Stretcher und Expander, 400 Hz Eichtongenerator.
2 ICs, 24 Dioden.
Net weight (2.2 lb = 1 kg) 21 kg / 46 lb 4.1 oz (46.256 lb)
Price in first year of sale 1'500.00 DM
Mentioned in High Fidelity Jahrbuch 8

Model page created by Franz Scharner. See "Data change" for further contributors.
