FM/AM Stereo Receiver Model 300

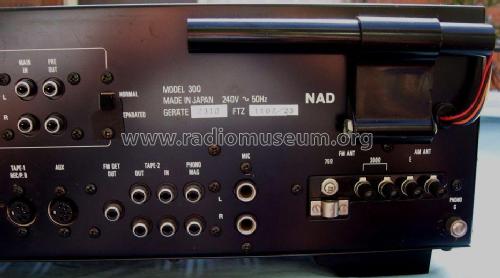

FM/AM Stereo Receiver Model 300; NAD, New Acoustic (ID = 1978013) Radio FM/AM Stereo Receiver Model 300; NAD, New Acoustic (ID = 1978015) Radio
FM/AM Stereo Receiver Model 300; NAD, New Acoustic (ID = 1978016) Radio FM/AM Stereo Receiver Model 300; NAD, New Acoustic (ID = 1978018) Radio
FM/AM Stereo Receiver Model 300; NAD, New Acoustic (ID = 1978019) Radio FM/AM Stereo Receiver Model 300; NAD, New Acoustic (ID = 1978020) Radio
FM/AM Stereo Receiver Model 300; NAD, New Acoustic (ID = 1978021) Radio FM/AM Stereo Receiver Model 300; NAD, New Acoustic (ID = 1978022) Radio
FM/AM Stereo Receiver Model 300; NAD, New Acoustic (ID = 2118377) Radio
Use red slider bar for more.
FM/AM Stereo Receiver Model 300; NAD, New Acoustic (ID = 1978013) Radio
NAD, New Acoustic: FM/AM Stereo Receiver Model 300 [Radio] ID = 1978013 1400x442
Select picture or schematic to display from thumbnails on the right and click for download.
For model FM/AM Stereo Receiver Model 300, NAD, New Acoustic Dimension; Ontario:
Ebay item no. 182063062162 seller kisshifi

Country:  Canada
Manufacturer / Brand:  NAD, New Acoustic Dimension; Ontario
Year: 1975/1976 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 74:
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 120; 220; 240 Volt
Loudspeaker - This model requires external speaker(s).
Power out 200 W (unknown quality)
from Radiomuseum.org Model: FM/AM Stereo Receiver Model 300 - NAD, New Acoustic Dimension;
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 508 x 150 x 440 mm / 20 x 5.9 x 17.3 inch
Notes

Stereo AM / FM receiver with 2 x 100 watts sine at 8 ohms. Overload protection circuit. Integrated Dolby B processor. Separately switchable stretcher and expander. 400 Hz calibration tone generator. 74 transistors, 2 MOS-FETs, 8 ICs, 30 diodes.

Stereo AM /FM Receiver mit 2x 100 Watt Sinus an 8 Ohm, Überlastschutzschaltung.
Integrierter Dolby-B-Prozessor, getrennt schaltbarer Stretcher und Expander. 400 Hz Eichtongenerator.
74 Transistoren, 2 MOS-FETs, 8 ICs, 30 Dioden.

Made in Japan.

Net weight (2.2 lb = 1 kg) 22 kg / 48 lb 7.3 oz (48.458 lb)
Price in first year of sale 2'500.00 DM
Mentioned in High Fidelity Jahrbuch 8
Literature/Schematics (1) Funk-Technik (FT) (12/1975, S. 366 / Neuvorstellung)

Model page created by Franz Scharner. See "Data change" for further contributors.
