Monitor Series Stereo Tuner 4300

Monitor Series Stereo Tuner 4300; NAD, New Acoustic (ID = 1745918) Radio Monitor Series Stereo Tuner 4300; NAD, New Acoustic (ID = 1745921) Radio
Use red slider bar for more.
Monitor Series Stereo Tuner 4300; NAD, New Acoustic (ID = 1745918) Radio
NAD, New Acoustic: Monitor Series Stereo Tuner 4300 [Radio] ID = 1745918 799x478
Select picture or schematic to display from thumbnails on the right and click for download.
For model Monitor Series Stereo Tuner 4300, NAD, New Acoustic Dimension; Ontario:

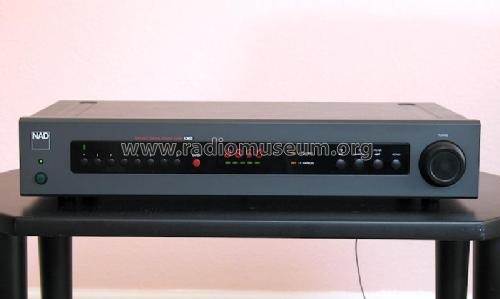

Picture of front. Original from AudioAsylumTrader.com ad.

Country:  Canada
Manufacturer / Brand:  NAD, New Acoustic Dimension; Ontario
Year: 1988 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 120; 220; 240 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Monitor Series Stereo Tuner 4300 - NAD, New Acoustic Dimension;
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 435 x 89 x 330 mm / 17.1 x 3.5 x 13 inch
Notes AM/FM Stereo Tuner, 8 Stationstasten, Digitalanzeige, vierstufige LED-Anzeige für Signalstärke.
Net weight (2.2 lb = 1 kg) 4.7 kg / 10 lb 5.6 oz (10.352 lb)
Mentioned in -- Original prospect or advert

Model page created by Franz Scharner. See "Data change" for further contributors.
