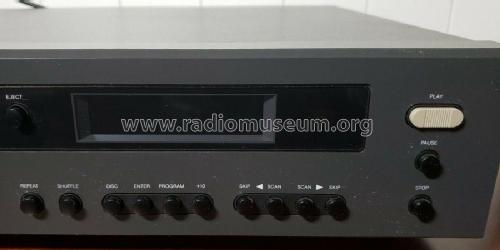

Multiple Play Compact Disc Player 5060

Multiple Play Compact Disc Player 5060; NAD, New Acoustic (ID = 2381535) R-Player Multiple Play Compact Disc Player 5060; NAD, New Acoustic (ID = 2381536) R-Player
Multiple Play Compact Disc Player 5060; NAD, New Acoustic (ID = 2381537) R-Player Multiple Play Compact Disc Player 5060; NAD, New Acoustic (ID = 2381538) R-Player
Multiple Play Compact Disc Player 5060; NAD, New Acoustic (ID = 2381539) R-Player Multiple Play Compact Disc Player 5060; NAD, New Acoustic (ID = 2381545) R-Player
Use red slider bar for more.
Multiple Play Compact Disc Player 5060; NAD, New Acoustic (ID = 2381535) R-Player
NAD, New Acoustic: Multiple Play Compact Disc Player 5060 [R-Player] ID = 2381535 1200x430
Select picture or schematic to display from thumbnails on the right and click for download.
For model Multiple Play Compact Disc Player 5060, NAD, New Acoustic Dimension; Ontario:
Ebay.com auction item 223483718766 seller wagsjr

Country:  Canada
Manufacturer / Brand:  NAD, New Acoustic Dimension; Ontario
Year: 1988–1991 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details CD-Player, -Writer, MD, MOD (audio); Radio Control (+Remote Wire etc)
Power type and voltage Alternating Current supply (AC) / 120 or 220 or 240 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Multiple Play Compact Disc Player 5060 - NAD, New Acoustic Dimension;
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 435 x 115 x 377 mm / 17.1 x 4.5 x 14.8 inch
Notes

A stereo hi-fi multiple compact disc player with remote control in NAD's Monitor Series of hi-fi separates. Six disc magazine, memory for 32 tracks.

Specification
Digital to Analogue conversion .............:  16 bit linear dual DAC 104 point linear phase,                                                                2 stage
Analogue Filter ...................................:  3 pole active
Frequency response ...........................:  5Hz to 20kHz +0.2dB - 0/-0.5dB
Signal to Noise Ratio A Weighted ........:  106db
THD (at 0dB, 1 kHz) ...........................:  0.035%
Dynamic Range .................................:  94dB
Channel separation 1 kHz ...................:  95dB
Output Level/Impedance .....................:  2 V rms / 470Ω

Versions/Power Requirements
120 V AC 60Hz
220 V AC 50Hz
240 V AC 50Hz

Made in Japan

Net weight (2.2 lb = 1 kg) 8.4 kg / 18 lb 8 oz (18.502 lb)
Mentioned in - - Manufacturers Literature (1988 NAD Audio Products Highlights catalogue)

Model page created by Howard Craven. See "Data change" for further contributors.
