Power Amplifier 902

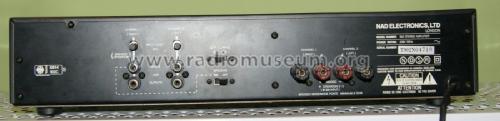

Power Amplifier 902; NAD, New Acoustic (ID = 2180057) Ampl/Mixer Power Amplifier 902; NAD, New Acoustic (ID = 2180061) Ampl/Mixer
Power Amplifier 902; NAD, New Acoustic (ID = 2180058) Ampl/Mixer Power Amplifier 902; NAD, New Acoustic (ID = 2180059) Ampl/Mixer
Power Amplifier 902; NAD, New Acoustic (ID = 2180060) Ampl/Mixer Power Amplifier 902; NAD, New Acoustic (ID = 1857899) Ampl/Mixer
Power Amplifier 902; NAD, New Acoustic (ID = 1857901) Ampl/Mixer
Use red slider bar for more.

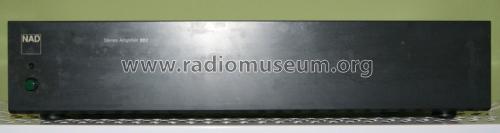

Power Amplifier 902; NAD, New Acoustic (ID = 2180057) Ampl/Mixer
NAD, New Acoustic: Power Amplifier 902 [Ampl/Mixer] ID = 2180057 1400x374
Select picture or schematic to display from thumbnails on the right and click for download.
For model Power Amplifier 902, NAD, New Acoustic Dimension; Ontario

Country:  Canada
Manufacturer / Brand:  NAD, New Acoustic Dimension; Ontario
Year: 1992 ? Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 120/220/240 Volt
Loudspeaker - This model requires external speaker(s).
Power out 60 W (undistorted)
from Radiomuseum.org Model: Power Amplifier 902 - NAD, New Acoustic Dimension;
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 420 x 83 x 270 mm / 16.5 x 3.3 x 10.6 inch
Notes

NAD Stereo Power Amplifier Model 902.
2x 30 Watts min. RMS into 8 ohms, 20-20000Hz, 0,05% THD
Clipping Power 2 x 38 Watts
IHF Dynamic Power:
2x 48 Watts into 8 ohms, 2x 65 Watts into 4 ohms, 2x 85 Watts into 2 ohms
Bridged Mode:
90 Watts into 8 ohms
IHF Dynamic Power:
140 Watts into 8 Ohms, 170 Watts into 4 Ohms
Power Consumption 240 VA


Net weight (2.2 lb = 1 kg) 5.3 kg / 11 lb 10.8 oz (11.674 lb)
Mentioned in -- Original prospect or advert (Autumn 1992 Product Guide)

Model page created by Franz Scharner. See "Data change" for further contributors.
