For model Stereo Cassette Deck 602, NAD, New Acoustic Dimension; Ontario:
Sold on archiwum.allegro.pl item_7156679408 seller mrbungle666

Country:  Canada
Manufacturer / Brand:  NAD, New Acoustic Dimension; Ontario
Year: 1993 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details Cassette-Recorder or -Player
Power type and voltage Alternating Current supply (AC) / 50/60Hz 240; 120/220/240 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Stereo Cassette Deck 602 - NAD, New Acoustic Dimension;
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 420 x 126 x 250 mm / 16.5 x 5 x 9.8 inch
Notes

NAD Stereo Cassette Tape Deck Model 602.
Type: 2-head, single compact cassette deck
Track System: 4-track, 2-channel stereo
Tape Speed: 4.75 cm/s
Heads: 1 x record/playback, 1 x erase
Tape Type: type I, Cr02, Metal
Noise Reduction: B, C, HX Pro
Frequency Response: 35Hz to 16kHz (Metal tape)
Signal to Noise Ratio: 70dB (dolby C)
Wow and Flutter: 0.06%
Total Harmonic Distortion: 1.5%
Input: 40mV (line) Output: 0.5V (line)
Power Consumption 22 Watts

Net weight (2.2 lb = 1 kg) 4.4 kg / 9 lb 11.1 oz (9.692 lb)

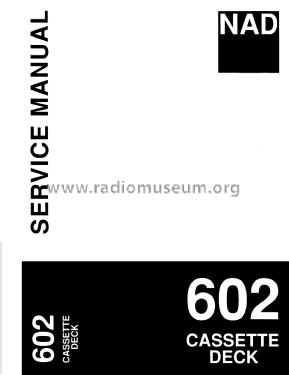

Mentioned in - - Manufacturers Literature (Service Manual)
Literature/Schematics (1) - - Manufacturers Literature (Instruction / Owners Manual)
