Stereo Preamplifier 106

Stereo Preamplifier 106; NAD, New Acoustic (ID = 2595080) Ampl/Mixer Stereo Preamplifier 106; NAD, New Acoustic (ID = 2595081) Ampl/Mixer
Stereo Preamplifier 106; NAD, New Acoustic (ID = 2595082) Ampl/Mixer Stereo Preamplifier 106; NAD, New Acoustic (ID = 1857222) Ampl/Mixer
Stereo Preamplifier 106; NAD, New Acoustic (ID = 1857224) Ampl/Mixer Stereo Preamplifier 106; NAD, New Acoustic (ID = 2118528) Ampl/Mixer
Stereo Preamplifier 106; NAD, New Acoustic (ID = 2118529) Ampl/Mixer
Use red slider bar for more.
Stereo Preamplifier 106; NAD, New Acoustic (ID = 2595080) Ampl/Mixer
NAD, New Acoustic: Stereo Preamplifier 106 [Ampl/Mixer] ID = 2595080 1400x265
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stereo Preamplifier 106, NAD, New Acoustic Dimension; Ontario:
ebay.de auction item_353197266808 seller amberone-hamburg

Country:  Canada
Manufacturer / Brand:  NAD, New Acoustic Dimension; Ontario
Year: 1992 ? Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 50/60Hz 120; 220; 240 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Stereo Preamplifier 106 - NAD, New Acoustic Dimension;
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 435 x 81 x 263 mm / 17.1 x 3.2 x 10.4 inch
Notes

NAD Stereo Preamplifier Model 106.
Phono Pre-Amp switchable for MC or MM input
Line Level Inputs - CD, Video, Tuner and Tape
Bass- & Treble Control
Power Consumption 20 Watts

Net weight (2.2 lb = 1 kg) 3.7 kg / 8 lb 2.4 oz (8.15 lb)

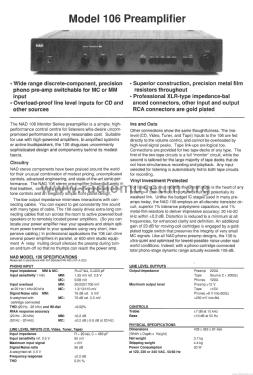

Mentioned in -- Original prospect or advert (Autumn 1992 Product Guide)

Model page created by Franz Scharner. See "Data change" for further contributors.
