Eveready 42

Eveready 42; Eveready Ever Ready, (ID = 436213) Radio

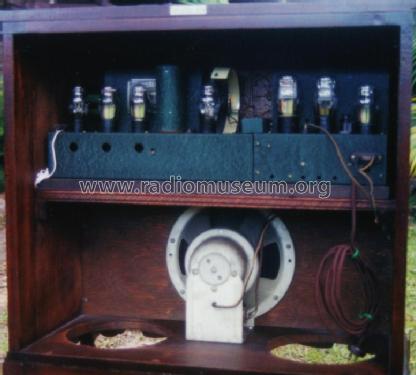

Eveready 42; Eveready Ever Ready, (ID = 617619) Radio Eveready 42; Eveready Ever Ready, (ID = 617620) Radio
Use red slider bar for more.

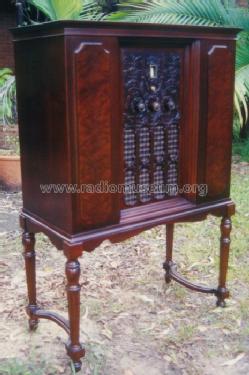

Eveready 42; Eveready Ever Ready, (ID = 617619) Radio
Eveready Ever Ready,: Eveready 42 [Radio] ID = 617619 466x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Eveready 42, Eveready (Ever Ready), AENMC / National Carbon Company (NCC); Columbia:
Eveready model 42, 1929.

Country:  United States of America (USA)
Manufacturer / Brand:  Eveready (Ever Ready), AENMC / National Carbon Company (NCC); Columbia
Year: 1929 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: 27 27 27 27 27 45 45 80
Main principle TRF without regeneration; Neutrodyne
Tuned circuits 4 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 110 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Eveready 42 - Eveready Ever Ready, AENMC /
Material Wooden case
Shape Console, Highboy (legs > 50 %).
Notes

One dial (primary tuning control knob) ; push-pull af output stage.

Price in first year of sale 180.00 $
External source of data Ernst Erb
Source of data Radio Collector`s Guide 1921-1932
Mentioned in The Radio Collector's Directory and Price Guide 1921 - 1965
Literature/Schematics (1) Radio Manufacturers of the 1920s, Vol 1
Literature/Schematics (2) Rider's Perpetual, Volume 1 = 1931/1934 (1919 to 1931) (National Carbon 1-3)
