G-613

G-613 ; National Union Radio (ID = 436249) Radio

G-613 ; National Union Radio (ID = 436250) Radio

G-613 ; National Union Radio (ID = 836000) Radio

G-613 ; National Union Radio (ID = 836001) Radio

G-613 ; National Union Radio (ID = 836002) Radio

G-613 ; National Union Radio (ID = 836003) Radio
G-613 ; National Union Radio (ID = 2053560) Radio G-613 ; National Union Radio (ID = 2053559) Radio
G-613 ; National Union Radio (ID = 2053561) Radio G-613 ; National Union Radio (ID = 2053563) Radio
G-613 ; National Union Radio (ID = 2053562) Radio G-613 ; National Union Radio (ID = 2053564) Radio
G-613 ; National Union Radio (ID = 1190914) Radio G-613 ; National Union Radio (ID = 835999) Radio
G-613 ; National Union Radio (ID = 1190916) Radio
Use red slider bar for more.
G-613 ; National Union Radio (ID = 2053560) Radio
National Union Radio: G-613 [Radio] ID = 2053560 1400x1233
Select picture or schematic to display from thumbnails on the right and click for download.
For model G-613, National Union Radio Corp.; Orange (NJ)

Country:  United States of America (USA)
Manufacturer / Brand:  National Union Radio Corp.; Orange (NJ)
Year: 1947 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 1A7GT 1N5GT 1N5GT 1H5GT 3Q5GT 117Z6GT
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Line / Batteries (any type) / AC/DC 110-120/ 90 & 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.5 inch = 11.4 cm
Power out
from Radiomuseum.org Model: G-613 - National Union Radio Corp.;
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 13 x 10.625 x 6 inch / 330 x 270 x 152 mm
Notes Built-in high-gain plug-in loop antenna.
External source of data Ernst Erb
Source of data Collector's Guide to Antique Radios 4. Edition

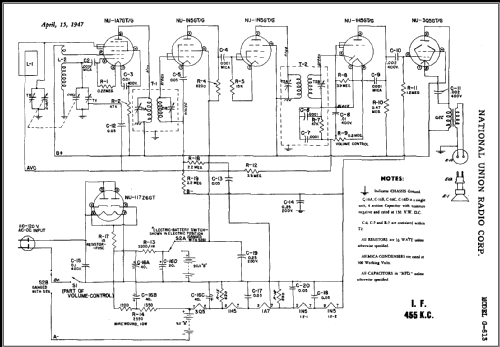

Circuit diagram reference Rider's Perpetual, Volume 16 = ca. 1948 and before
Mentioned in The Radio Collector's Directory and Price Guide 1921 - 1965
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 9, Folder 479-23)
Literature/Schematics (2) Radio Retailing (Radio & Television R.) (April 1947 page 42.)
