National AB-145

National AB-145; Panasonic, (ID = 724786) Radio National AB-145; Panasonic, (ID = 724787) Radio

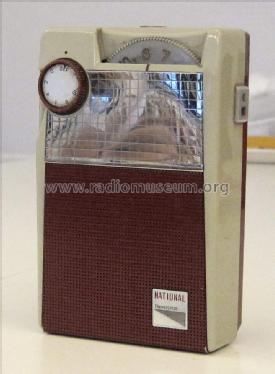

National AB-145; Panasonic, (ID = 1347429) Radio National AB-145; Panasonic, (ID = 1347430) Radio
National AB-145; Panasonic, (ID = 1347482) Radio
Use red slider bar for more.
National AB-145; Panasonic, (ID = 724786) Radio
Panasonic,: National AB-145 [Radio] ID = 724786 313x448
Select picture or schematic to display from thumbnails on the right and click for download.
For model National AB-145, Panasonic, Matsushita, National ナショナル (also tubes); Osaka

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1958 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 5: OC44 OC45 OC71 OC76 or. MC75 OC76 or. MC75 OA70 OA70
Main principle Superheterodyne (common); ZF/IF 455 kHz
Tuned circuits 4 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: National AB-145 - Panasonic, Matsushita,
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 68 x 111 x 35 mm / 2.7 x 4.4 x 1.4 inch
Notes

The 5-transistor AB-145 is basically the same as the National EB-145 sold in the domestic Japanese market and the radio sold as the Maco T-14 in America.
Semiconductors by Matsushita, brand name "National".
