• Country
• United States of America (USA)

• Manufacturer / Brand
• National Company; Cambridge & Malden (MA)

• Year
• 1962/1963 ?

• Category
• Amateur-Receiver (amateur bands, may include broadcast bands)

• Radiomuseum.org ID
• 88148

• • alternative name: National Toy Co.
  • Brand: Thrillbox

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6BE6 6BA6 6BA6 6T8 6AW8 6X4

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 105-125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Material
• Metal case

• from Radiomuseum.org

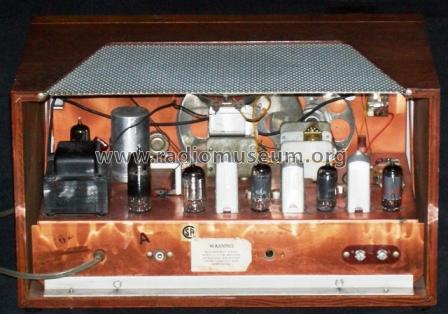

• Model: NC-105 - National Company; Cambridge &

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 343 x 195 x 220 mm / 13.5 x 7.7 x 8.7 inch

• Notes
• coverage 550 kHz - 30 MHz; AM, SSB;
  variant NC-105W with walnut enclosure

• Net weight (2.2 lb = 1 kg)
• 11.3 kg / 24 lb 14.2 oz (24.89 lb)

• Price in first year of sale
• 120.00 $

• Source of data
• Communications Receivers

• Mentioned in
• Shortwave Receivers - Past & Present (3rd ed.)

• Author
• Model page created by Martin Bösch. See "Data change" for further contributors.
