FM-AM 6-Band Radio RF-3000A

FM-AM 6-Band Radio RF-3000A; Panasonic, (ID = 493036) Radio

FM-AM 6-Band Radio RF-3000A; Panasonic, (ID = 493037) Radio

FM-AM 6-Band Radio RF-3000A; Panasonic, (ID = 493038) Radio

FM-AM 6-Band Radio RF-3000A; Panasonic, (ID = 493039) Radio
FM-AM 6-Band Radio RF-3000A; Panasonic, (ID = 226590) Radio FM-AM 6-Band Radio RF-3000A; Panasonic, (ID = 226591) Radio
FM-AM 6-Band Radio RF-3000A; Panasonic, (ID = 226592) Radio FM-AM 6-Band Radio RF-3000A; Panasonic, (ID = 226593) Radio
FM-AM 6-Band Radio RF-3000A; Panasonic, (ID = 1807943) Radio
Use red slider bar for more.
FM-AM 6-Band Radio RF-3000A; Panasonic, (ID = 226590) Radio
Panasonic,: FM-AM 6-Band Radio RF-3000A [Radio] ID = 226590 800x600
Select picture or schematic to display from thumbnails on the right and click for download.

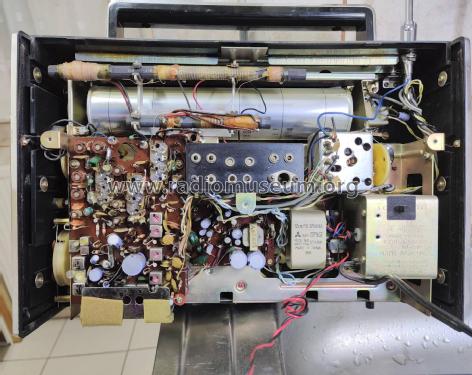

For model FM-AM 6-Band Radio RF-3000A, Panasonic, Matsushita, National ナショナル (also tubes); Osaka

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1971 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 19: 2SC429 2SC185 2SC469 2SB176 2SC183 2SB173 2SB171 2SB175 2SB324 SC-15 OA70 OA79 1S1211
Main principle Superhet with RF-stage; ZF/IF 455/10700 kHz; 4 AF stage(s)
Tuned circuits 5 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 110; 220 / UM1: 6 × 1,5 Volt
Loudspeaker 2 Loudspeakers
Power out 1.2 W (unknown quality)
from Radiomuseum.org Model: FM-AM 6-Band Radio RF-3000A - Panasonic, Matsushita,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 370 x 254 x 129 mm / 14.6 x 10 x 5.1 inch
Notes

10 Dioden, 2 ICs. Ausklappbare Rahmenantenne für Kurzwelle. Das Gerät hat im Gegensatz zum R-3000 ein UKW(FM)-Teil, dafür aber einen KW-Bereich (22-30 MHz) weniger.

AM-ZF enthält neben 2 LC-Kreisen ein vierpoliges Keramikfilter (Piezofilter).

Jeder Halbleiter-Typ ist nur einmal gelistet.

Net weight (2.2 lb = 1 kg) 5.6 kg / 12 lb 5.4 oz (12.335 lb)
Mentioned in -- Original-techn. papers.

Model page created by Hans Fischer. See "Data change" for further contributors.
