Super-Regenerative Receiver SRR

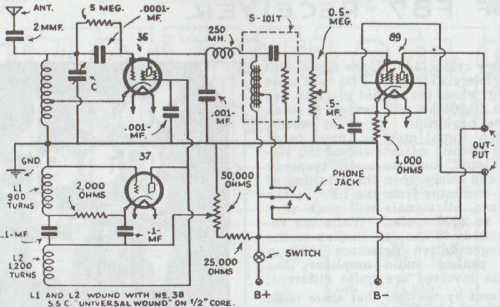

Super-Regenerative Receiver SRR; National Company; (ID = 2068617) Amateur-R

Super-Regenerative Receiver SRR; National Company; (ID = 2070536) Amateur-R
Super-Regenerative Receiver SRR; National Company; (ID = 2053721) Amateur-R Super-Regenerative Receiver SRR; National Company; (ID = 2053722) Amateur-R
Super-Regenerative Receiver SRR; National Company; (ID = 2075711) Amateur-R
Use red slider bar for more.
Super-Regenerative Receiver SRR; National Company; (ID = 2053721) Amateur-R
National Company;: Super-Regenerative Receiver SRR [Amateur-R] ID = 2053721 806x989
Select picture or schematic to display from thumbnails on the right and click for download.
For model Super-Regenerative Receiver SRR, National Company; Cambridge & Malden (MA):
National Catalog No. 220 - 1933

Country:  United States of America (USA)
Manufacturer / Brand:  National Company; Cambridge & Malden (MA)
alternative name

National Toy Co.
Brand
Thrillbox
Year: 1933–1935 Category: Amateur-Receiver (amateur bands, may include broadcast bands)
Valves / Tubes 3: 236 237 89
Main principle TRF with regeneration
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Powered by external power supply or a main unit. / 6 / 180 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Super-Regenerative Receiver SRR - National Company; Cambridge &
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 7.75 x 7 x 7.75 inch / 197 x 178 x 197 mm
Notes

The National SSR receiver utilizes a single plug-in coil for bands. It covers the 5 meter (56-60 MHz) former amateur band with supplied coil. Optional coils for the 10, 20, 40, 80 and 160 meter amateur bands were available. ($1.25 US each). The National 5886-AB power supply was also available as an acessory. The SRR has a National B Dial for tuning.

Net weight (2.2 lb = 1 kg) 8.25 lb (8 lb 4 oz) / 3.746 kg
Price in first year of sale 29.50 USD
Mentioned in National Catalog No. 220 - 1933
Literature/Schematics (1) Short Wave Craft July 1933 pages 151, 175 and 187

Model page created by Martin Bösch. See "Data change" for further contributors.
