Vollstereo-Anlage Art. Nr. 821/713

Vollstereo-Anlage Art. Nr. 821/713; Neckermann-Versand (ID = 2185346) Radio
Vollstereo-Anlage Art. Nr. 821/713; Neckermann-Versand (ID = 2057328) Radio Vollstereo-Anlage Art. Nr. 821/713; Neckermann-Versand (ID = 2057329) Radio
Vollstereo-Anlage Art. Nr. 821/713; Neckermann-Versand (ID = 2057330) Radio Vollstereo-Anlage Art. Nr. 821/713; Neckermann-Versand (ID = 2057331) Radio
Vollstereo-Anlage Art. Nr. 821/713; Neckermann-Versand (ID = 2057332) Radio Vollstereo-Anlage Art. Nr. 821/713; Neckermann-Versand (ID = 2057333) Radio
Vollstereo-Anlage Art. Nr. 821/713; Neckermann-Versand (ID = 335898) Radio Vollstereo-Anlage Art. Nr. 821/713; Neckermann-Versand (ID = 335899) Radio
Vollstereo-Anlage Art. Nr. 821/713; Neckermann-Versand (ID = 766759) Radio Vollstereo-Anlage Art. Nr. 821/713; Neckermann-Versand (ID = 863466) Radio
Use red slider bar for more.
Vollstereo-Anlage Art. Nr. 821/713; Neckermann-Versand (ID = 2057328) Radio
Neckermann-Versand: Vollstereo-Anlage Art. Nr. 821/713 [Radio] ID = 2057328 1397x555
Select picture or schematic to display from thumbnails on the right and click for download.
For model Vollstereo-Anlage Art. Nr. 821/713, Neckermann-Versand KG; Frankfurt a.M.:
Lautsprecherboxen serienmaessig dabei!

Country:  Germany
Manufacturer / Brand:  Neckermann-Versand KG; Frankfurt a.M.
Brand

Twen Tone
Year: 1971–1973 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 28:
Main principle Superheterodyne (common)
Tuned circuits 5 AM circuit(s)     8 FM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out 10 W (max.)
from Radiomuseum.org Model: Vollstereo-Anlage Art. Nr. 821/713 - Neckermann-Versand KG;
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 240 x 240 x 180 mm / 9.4 x 9.4 x 7.1 inch
Notes

10 Watt Vollstereoanlage

Neuvorstellung Frühjahr 1971, kleines Vollstereo-Steuergerät im "Softline-Design" und mit transluzenter Rundskala, UKW- und Mittelwellenempfang, passende Lautsprecherboxen (Abmessungen wie Steuergerät) wurden mitgeliefert. 2 x 5 Watt Musikleistung, Frequenzgang 60 - 20.000 Hz, eine DIN-Eingangsbuchse für Phono oder Tape, 18 Dioden, 3 Gleichrichter.

Farbe: weiß (09)

Ausführung mit und ohne FTZ-Nummer bekannt.

Made in Japan.

Neuvorstellung zum Preise von 349,- DM, später nur noch 299,- DM ("Preissensation").



Net weight (2.2 lb = 1 kg) 3.6 kg / 7 lb 14.9 oz (7.93 lb)
Price in first year of sale 349.00 DM

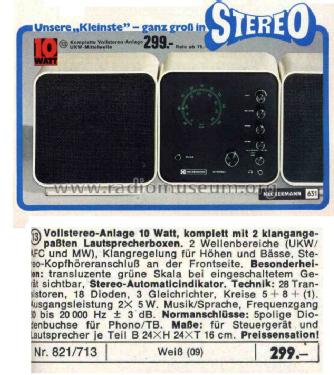

Mentioned in -- Original prospect or advert (Neckermann Katalog 1971 und 1972)

Model page created by Peter Böhm. See "Data change" for further contributors.



All listed radios etc. from Neckermann-Versand KG; Frankfurt a.M.
Here you find 525 models, 467 with images and 155 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
