91897 Art.Nr. 820Y46
Neckermann-Versand KG; Frankfurt a.M.
- Country
- Germany
- Manufacturer / Brand
- Neckermann-Versand KG; Frankfurt a.M.
- Year
- 1962/1963
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 321861
-
- Brand: Twen Tone

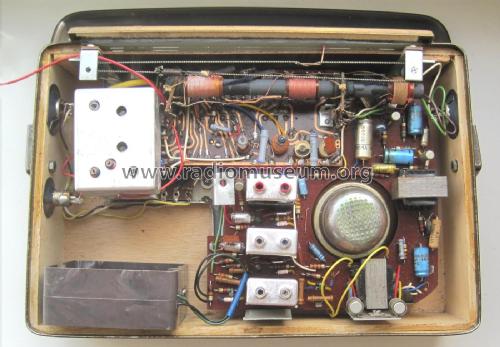

Seriennummer 714595
Seriennummer 714595
Seriennummer 714595, Südfunk-Typschild 91897

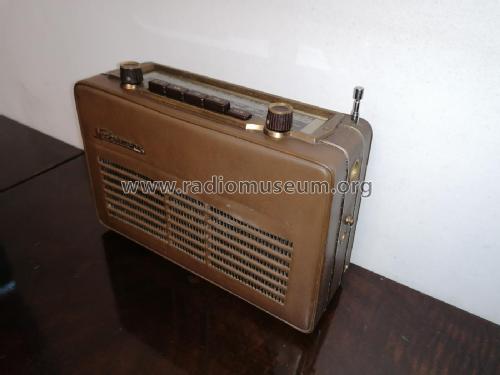

Foto de Francisco Martins
Foto de Francisco Martins
Foto de Francisco Martins
- Number of Transistors
- 9
- Semiconductors
- 2SA76 OC615 2SA77 AF105 AF105 2SB54 2SB54 2SB202 2SB202 1N60 1N60 1N60 OA79 OA79 E25C25
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz; 3 AF stage(s)
- Tuned circuits
- 7 AM circuit(s) 11 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Dry Batteries / 3R12: 2 x 4,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
- Power out
- 0.9 W (undistorted)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: 91897 Art.Nr. 820Y46 - Neckermann-Versand KG;
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 285 x 220 x 95 mm / 11.2 x 8.7 x 3.7 inch
- Notes
-
Parallelmodell in anderem Gehäuse zu Südfunk K91897 und Quelle Simonetta K91897
Tastenfolge: Klang, LW, MW, KW, UKW (-104MHz)
Anschlüsse: Antenne (koax), Netzteil (DIN-spezial), TB/Phono (DIN)
Das Modell hat noch keine AUTO-Taste
Bestellnummer im Neckermann-Katalog Nr. 163 (1.9.62) und Nr. 164 (1.3.63): 820Y46
Hergestellt bei Südfunk-Apparatebau Stuttgart für Neckermann Versand KG.
- Net weight (2.2 lb = 1 kg)
- 2.3 kg / 5 lb 1.1 oz (5.066 lb)
- Price in first year of sale
- 228.00 DM
- Mentioned in
- Neckermann-Katalog (Nr. 163 vom 1.9.1962 und Nr. 164 vom 1.3.1963)
- Author
- Model page created by Wolfgang Gebert. See "Data change" for further contributors.
