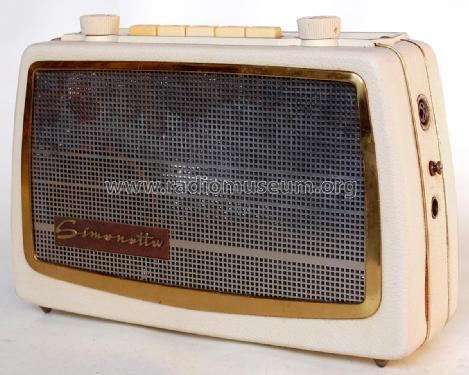

Simonetta Autokoffer Luxus BT941 Art.-Nr. 08534 Ch= 91897 Endstufentransistoren 2SB202

QUELLE GmbH (Universum); Fürth und Nürnberg

  • Year
  • 1963 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 220607

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 9
  • Main principle
  • Superheterodyne (common); ZF/IF 460/10700 kHz; 3 AF stage(s)
  • Tuned circuits
  • 7 AM circuit(s)     11 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Batteries / addl. power jack / 2 x 4,5 / 9 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
  • Material
  • Leather / canvas / plastic - over other material
  • from Radiomuseum.org
  • Model: Simonetta Autokoffer Luxus BT941 Art.-Nr. 08534 Ch= 91897 [Endstufentransistoren 2SB202] - QUELLE GmbH Universum; Fürth
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 280 x 200 x 90 mm / 11 x 7.9 x 3.5 inch
  • Notes
  • Siehe auch Südfunk K91897.
    Vorgängermodell: Simonetta BT941
    Nachfolgemodell: Simonetta BT941 Ch=91097
    Schaltung wie Schaltbild zu Simonetta BT941, aber bereits großteils japanische Halbleiter.

    Tastenfolge:  Klang, LW, MW, KW, UKW
    UKW-Bereich bis 104 MHz, Anschluss für Aussenantenne und Netzteil (oder Autoantenne und Autobatterie über Autohalterung), Anschluss für TA/TB (DIN 5-pol), noch keine "AUTO-Taste"

  • Net weight (2.2 lb = 1 kg)
  • 2.2 kg / 4 lb 13.5 oz (4.846 lb)
  • Author
  • Model page created by Ottmar Lauth. See "Data change" for further contributors.
