OC615M

Information - Help
ID = 46072

Country:
Germany
Brand: Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Tube type:  Transistor   VHF
Identical to OC615M
Similar Tubes
Normally replaceable-slightly different:
  OC615 ; OC615V
Base Wires
Description

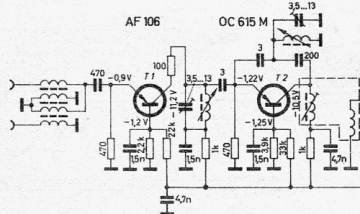

PNP germanium junction transistor for FM mixer/oscillator applications. Allglass, red dot indicates collector. Selected type "M" for FM mixer.
-


Text in other languages (may differ)
Dimensions (WHD)
incl. pins / tip		 5 x 15 x mm / 0.20 x 0.59 x inch
Weight 2 g / 0.07 oz
OC615M
Egon Strampe
allglas_trans_27.gif OC615M: TVT 73
Günther Stabe † 19.8.20
OC615M: TFK-Datenbuch 1969
Karl-Heinz Entrich † 7.21
Usage in Models 1= 1960? ; 1= 1962? ; 5= 1962 ; 2= 1963?? ; 2= 1963? ; 7= 1963 ; 2= 1964? ; 5= 1964 ; 1= 1965? ; 1= 1966??
Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):27

Collection of

Karl-Heinz Entrich † 7.21 (D)
Günther Stabe † 19.8.20 (D)
Siegfried Neumann (D)
