Art. Nr. 821Y32

Art. Nr. 821Y32; Neckermann-Versand (ID = 1709003) Radio Art. Nr. 821Y32; Neckermann-Versand (ID = 1708999) Radio

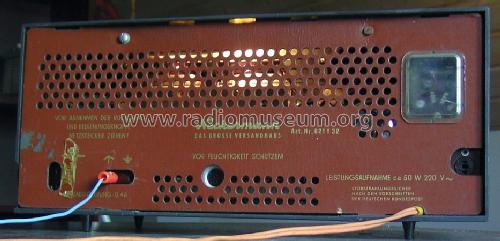

Art. Nr. 821Y32; Neckermann-Versand (ID = 1709001) Radio Art. Nr. 821Y32; Neckermann-Versand (ID = 1709002) Radio
Use red slider bar for more.
Art. Nr. 821Y32; Neckermann-Versand (ID = 1709003) Radio
Neckermann-Versand: Art. Nr. 821Y32 [Radio] ID = 1709003 933x423
Select picture or schematic to display from thumbnails on the right and click for download.
For model Art. Nr. 821Y32, Neckermann-Versand KG; Frankfurt a.M.

Country:  Germany
Manufacturer / Brand:  Neckermann-Versand KG; Frankfurt a.M.
Brand

Twen Tone
Year: 1966 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECC85 ECH81 EBF89 ECL82
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Art. Nr. 821Y32 - Neckermann-Versand KG;
Material Plastics (no bakelite or catalin)
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 375 x 170 x 175 mm / 14.8 x 6.7 x 6.9 inch
Notes

Kurzwelle: 49 m - Bereich.
Abstimmung per Variometer.

Hergestellt in der DDR von Stern Radio Sonneberg.
Entspricht dem Modell Jalta 5360D.

Model page created by Ottmar Lauth. See "Data change" for further contributors.
