Jalta 5360D

Jalta 5360D; Stern-Radio (ID = 62377) Radio Jalta 5360D; Stern-Radio (ID = 62378) Radio
Jalta 5360D; Stern-Radio (ID = 62382) Radio
Use red slider bar for more.

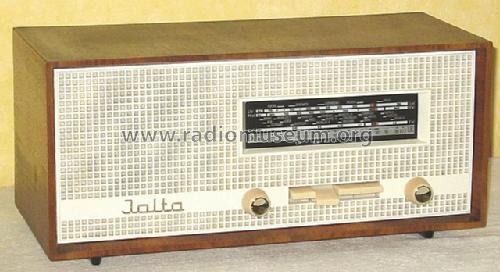

Jalta 5360D; Stern-Radio (ID = 62377) Radio
Stern-Radio: Jalta 5360D [Radio] ID = 62377 640x349
Select picture or schematic to display from thumbnails on the right and click for download.
For model Jalta 5360D, Stern-Radio Sonneberg, VEB, RFT; SONRA; -vorm.: EAK (Ostd.) - ex. AEG

Country:  Germany
Manufacturer / Brand:  Stern-Radio Sonneberg, VEB, RFT; SONRA; -vorm.: EAK (Ostd.) - ex. AEG
Year: 1964–1966 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECC85 ECH81 EBF89 ECL82
schematic requested
Main principle Super-Heterodyne (Super in general)
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch
Power out 2 W (unknown quality)
from Radiomuseum.org Model: Jalta 5360D - Stern-Radio Sonneberg, VEB,
Material Wooden case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 380 x 175 x 170 mm / 15 x 6.9 x 6.7 inch
Notes

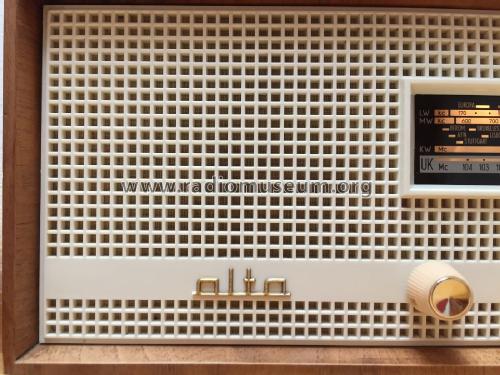

Frontplatte perforierter Kunststoff. UKW-Bereich bis 104 MHz.

Auch als Exportgerät für Neckermann Art. Nr. 821Y32.

Net weight (2.2 lb = 1 kg) 4 kg / 8 lb 13 oz (8.811 lb)
Collectors' prices
Source of data Die Geschichte der Rundfunkindustrie der DDR Band 1 1945 - 1967 / Radiokatalog Band 2, Ernst Erb
