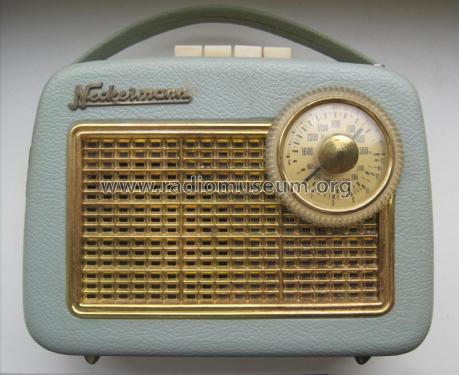

K776 (LMK)

Neckermann-Versand KG; Frankfurt a.M.

Data
Forum
Pictures
Collections

  • Year
  • 1961
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 314343
    • Brand: Twen Tone

 Technical Specifications

  • Number of Transistors
  • 7
  • Main principle
  • Superheterodyne (common); ZF/IF 470 kHz; 3 AF stage(s)
  • Tuned circuits
  • 8 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • Dry Batteries / 4 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
  • Material
  • Leather / canvas / plastic - over other material
  • from Radiomuseum.org
  • Model: K776 - Neckermann-Versand KG;
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 220 x 170 x 85 mm / 8.7 x 6.7 x 3.3 inch
  • Notes

  • Wahrscheinlich Neckermann Bestellnummer 820Y21 aus Katalog160 vom 1.3.61

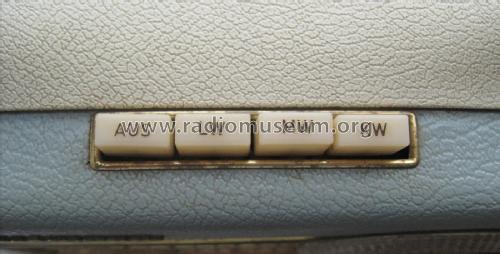

    4 Tasten: AUS, LW, MW, KW, Antennenanschluss: Telefonbuchse, KW: 6-12MHz

    Gerät nicht identisch mit Südfunk "Portable" K776 mit MW, 2x KW

    Hersteller: Südfunk Apparatebau Stuttgart für Neckermann Versand KG, Frankfurt a.M.

  • Net weight (2.2 lb = 1 kg)
  • 1.7 kg / 3 lb 11.9 oz (3.744 lb)
  • Author
  • Model page created by Wolfgang Gebert. See "Data change" for further contributors.
