Konzertmeister 111/32 Ch= AD 2-369

Konzertmeister 111/32 Ch= AD 2-369; Neckermann-Versand (ID = 695972) Radio

Konzertmeister 111/32 Ch= AD 2-369; Neckermann-Versand (ID = 695973) Radio

Konzertmeister 111/32 Ch= AD 2-369; Neckermann-Versand (ID = 695971) Radio

Konzertmeister 111/32 Ch= AD 2-369; Neckermann-Versand (ID = 695974) Radio

Konzertmeister 111/32 Ch= AD 2-369; Neckermann-Versand (ID = 695975) Radio
Konzertmeister 111/32 Ch= AD 2-369; Neckermann-Versand (ID = 221582) Radio Konzertmeister 111/32 Ch= AD 2-369; Neckermann-Versand (ID = 221585) Radio
Konzertmeister 111/32 Ch= AD 2-369; Neckermann-Versand (ID = 221587) Radio Konzertmeister 111/32 Ch= AD 2-369; Neckermann-Versand (ID = 221584) Radio
Konzertmeister 111/32 Ch= AD 2-369; Neckermann-Versand (ID = 1101455) Radio
Use red slider bar for more.
Konzertmeister 111/32 Ch= AD 2-369; Neckermann-Versand (ID = 221582) Radio

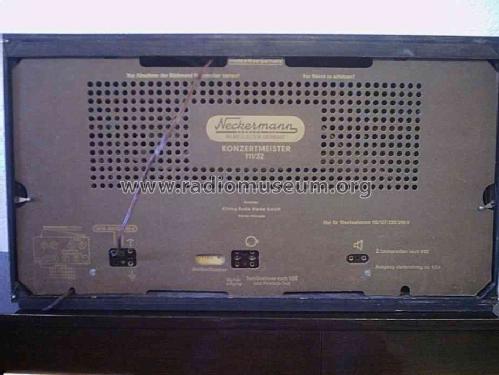

Neckermann-Versand: Konzertmeister 111/32 Ch= AD 2-369 [Radio] ID = 221582 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Konzertmeister 111/32 Ch= AD 2-369, Neckermann-Versand KG; Frankfurt a.M.

Country:  Germany
Manufacturer / Brand:  Neckermann-Versand KG; Frankfurt a.M.
Brand

Twen Tone
Year: 1956 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 9: ECC85 ECH81 EF89 ECH81 EM85 EBC91 ECL82 ECL82 EZ81
Main principle Super-Heterodyne (Super in general); ZF/IF 472/10700 kHz
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker 5 Loudspeakers
Power out
from Radiomuseum.org Model: Konzertmeister 111/32 Ch= AD 2-369 - Neckermann-Versand KG;
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 700 x 400 x 270 mm / 27.6 x 15.7 x 10.6 inch
Notes

Hersteller: Körting, Paralleltype zum Syntektor 730W.

Synchrodetektor, Spezielle Rauschunterdrückung bei UKW ("UKW Nah"), drehbare Ferritantenne, KW-Lupe, Gegentaktendstufe, Klangregister.

Net weight (2.2 lb = 1 kg) 15.3 kg / 33 lb 11.2 oz (33.7 lb)
Collectors' prices
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Walter Augenstein. See "Data change" for further contributors.



All listed radios etc. from Neckermann-Versand KG; Frankfurt a.M.
Here you find 509 models, 451 with images and 151 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
