• Country
• Germany

• Manufacturer / Brand
• Neuberger, Josef; München

• Year
• 1935

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 82593

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• Powered by external power supply or a main unit. / 0 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

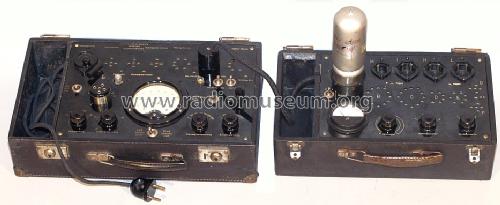

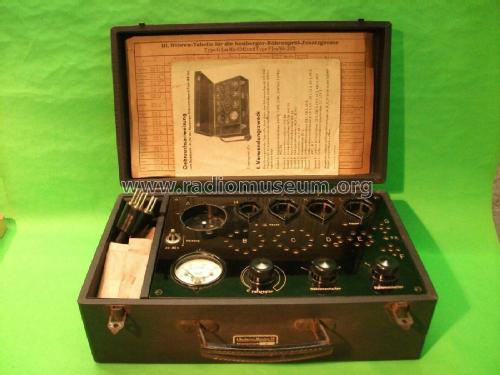

• Model: Röhrenprüf-Zusatzgerät Type G für WE234 - Neuberger, Josef; München

• Dimensions (WHD)
• 330 x 120 x 200 mm / 13 x 4.7 x 7.9 inch

• Notes

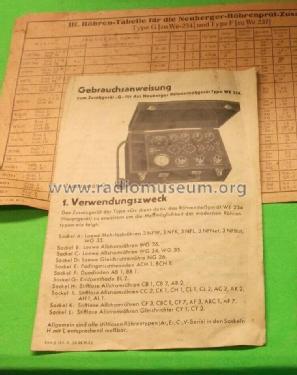

• Zusatzgerät zu Neuberger Röhrenprüfer We234 zum Prüfen von Außenkontaktröhren und Loewe Mehrfachröhre 3 NF bis WG 36.

• Net weight (2.2 lb = 1 kg)
• 1 kg / 2 lb 3.2 oz (2.203 lb)

• Price in first year of sale
• 35.00 RM

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Author
• Model page created by a member from D. See "Data change" for further contributors.
