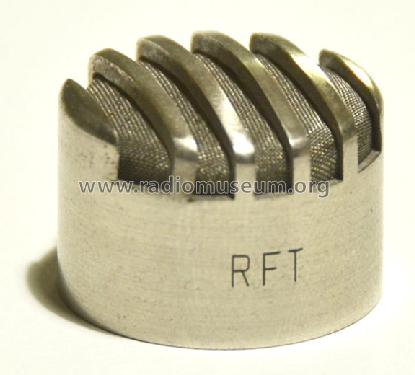

Kondensatormikrofonkapsel M58

Kondensatormikrofonkapsel M58; Neumann & Co, Georg; (ID = 614852) Microphone/PU Kondensatormikrofonkapsel M58; Neumann & Co, Georg; (ID = 1592192) Microphone/PU
Kondensatormikrofonkapsel M58; Neumann & Co, Georg; (ID = 1592193) Microphone/PU Kondensatormikrofonkapsel M58; Neumann & Co, Georg; (ID = 1592194) Microphone/PU
Kondensatormikrofonkapsel M58; Neumann & Co, Georg; (ID = 1592195) Microphone/PU
Use red slider bar for more.
Kondensatormikrofonkapsel M58; Neumann & Co, Georg; (ID = 614852) Microphone/PU
Neumann & Co, Georg;: Kondensatormikrofonkapsel M58 [Microphone/PU] ID = 614852 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Kondensatormikrofonkapsel M58, Neumann & Co, Georg; Gefell

Country:  Germany
Manufacturer / Brand:  Neumann & Co, Georg; Gefell
Year: 1961 ?? Category: Microphone or Pick-up element
Main principle none
Wave bands - without
Details
Power type and voltage Powered by external power supply or a main unit.
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Kondensatormikrofonkapsel M58 - Neumann & Co, Georg; Gefell
Material Metal case
Shape Miscellaneous shapes - described under notes.
Dimensions (WHD) 25 x 18 x 25 mm / 1 x 0.7 x 1 inch
Notes Mikrophonkapsel mit Kugelcharakteristik (Druckempfänger). Geeignet für die Verstärker M 582, M92a, MV 690 und andere. Später erhielt die gleiche Kapsel die Bezeichnung M 93, eine Anpassung an das Bezeichnungssystem des DDR-Rundfunks.
Net weight (2.2 lb = 1 kg) 0.1 kg / 0 lb 3.5 oz (0.22 lb)

Model page created by Nikolaus Löwe. See "Data change" for further contributors.
