M269c

M269c; Neumann, Georg, (ID = 187772) Microphone/PU
M269c; Neumann, Georg, (ID = 186756) Microphone/PU M269c; Neumann, Georg, (ID = 186757) Microphone/PU

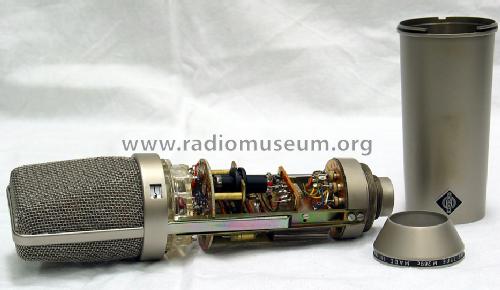

M269c; Neumann, Georg, (ID = 186758) Microphone/PU M269c; Neumann, Georg, (ID = 186759) Microphone/PU
M269c; Neumann, Georg, (ID = 186760) Microphone/PU M269c; Neumann, Georg, (ID = 186761) Microphone/PU
M269c; Neumann, Georg, (ID = 186762) Microphone/PU M269c; Neumann, Georg, (ID = 520209) Microphone/PU
Use red slider bar for more.
M269c; Neumann, Georg, (ID = 186756) Microphone/PU
Neumann, Georg,: M269c [Microphone/PU] ID = 186756 933x388
Select picture or schematic to display from thumbnails on the right and click for download.
For model M269c, Neumann, Georg, Laboratorium für Elektroakustik GmbH; Berlin

Country:  Germany
Manufacturer / Brand:  Neumann, Georg, Laboratorium für Elektroakustik GmbH; Berlin
Year: 1963–1967 Category: Microphone or Pick-up element
Valves / Tubes 1: AC701k
Wave bands - without
Details
Power type and voltage Other, details in remarks or not known.
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: M269c - Neumann, Georg, Laboratorium f
Material Metal case
Dimensions (WHD) 55 x 205 x 55 mm / 2.2 x 8.1 x 2.2 inch
Notes Großmembran-Mikrofon. Speisung aus Netzgerät NN48h, N52a oder N52t; Batteriespeisung mit BB9h. Richtcharakteristik: Kugel, Niere, Acht, am NG ferneinstellbar.
Net weight (2.2 lb = 1 kg) 0.6 kg / 1 lb 5.1 oz (1.322 lb)
Price in first year of sale 695.00 DM
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Bernhard Nagel. See "Data change" for further contributors.
