U67

U67; Neumann, Georg, (ID = 2529428) Microphone/PU
U67; Neumann, Georg, (ID = 1198606) Microphone/PU U67; Neumann, Georg, (ID = 451527) Microphone/PU
U67; Neumann, Georg, (ID = 520208) Microphone/PU U67; Neumann, Georg, (ID = 1198592) Microphone/PU

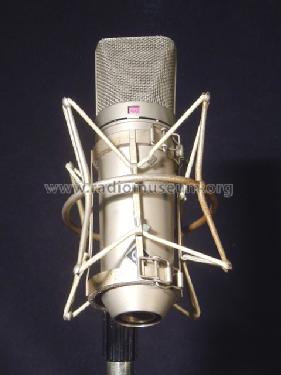

U67; Neumann, Georg, (ID = 1198599) Microphone/PU U67; Neumann, Georg, (ID = 1198612) Microphone/PU
U67; Neumann, Georg, (ID = 1198618) Microphone/PU U67; Neumann, Georg, (ID = 1824699) Microphone/PU
U67; Neumann, Georg, (ID = 1824735) Microphone/PU U67; Neumann, Georg, (ID = 1824736) Microphone/PU
Use red slider bar for more.
U67; Neumann, Georg, (ID = 1198606) Microphone/PU
Neumann, Georg,: U67 [Microphone/PU] ID = 1198606 480x640
Select picture or schematic to display from thumbnails on the right and click for download.
For model U67, Neumann, Georg, Laboratorium für Elektroakustik GmbH; Berlin

Country:  Germany
Manufacturer / Brand:  Neumann, Georg, Laboratorium für Elektroakustik GmbH; Berlin
Year: 1960 Category: Microphone or Pick-up element
Valves / Tubes 1: EF86
Main principle Audio-Amplification; 1 AF stage(s)
Wave bands - without
Details
Power type and voltage Powered by external power supply or a main unit.
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: U67 - Neumann, Georg, Laboratorium f
Material Metal case
Dimensions (WHD) 56 x 201 x 56 mm / 2.2 x 7.9 x 2.2 inch
Notes Kondensator-Mikrofon, umschaltbar: Kugel/Niere/Acht, Frequenzgang 20...160000 Hz, Impedanz 200 Ohm (auf 50 Ohm umschaltbar), Empfindlichkeit 2.2/1.3 mV/µb. Speisung aus Netzanschlussgerät NU 67 (DM 350,-).
Net weight (2.2 lb = 1 kg) 0.5 kg / 1 lb 1.6 oz (1.101 lb)
Price in first year of sale 595.00 DM
Source of data -- Original prospect or advert

Model page created by Günther Stabe † 19.8.20. See "Data change" for further contributors.
