For model Kurzzeitmesser 1022, NEVA, Dr. Vatter KG; Geislingen:

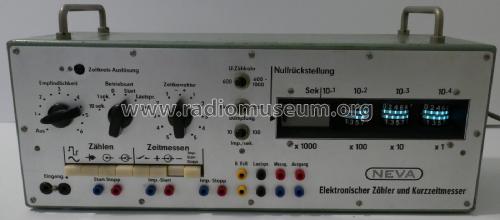

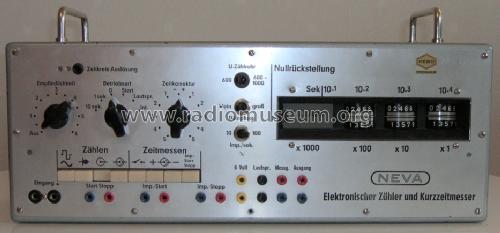

Front of Neva Kurzzeitmesser 1022, earlier used at university.

Country:  Germany
Manufacturer / Brand:  NEVA, Dr. Vatter KG; Geislingen
Year: 1966 ? Category: Service- or Lab Equipment
Valves / Tubes 14: EF80 EF80 2D21 E90CC E90CC E90CC E90CC E90CC E90CC E1T E1T E1T EZ81 150C2
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110/130V; 220 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Kurzzeitmesser 1022 - NEVA, Dr. Vatter KG;
Material Metal case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 480 x 175 x 160 mm / 18.9 x 6.9 x 6.3 inch

Model page created by Martin Forsberg. See "Data change" for further contributors.
