• Year
  • 1954/1955
  • Category
  • Pre-stage (adaptor for SW/FM/VHF/UHF incl. built-in), Frequency converter
  • Radiomuseum.org ID
  • 16009
    • Brand: Nicolette

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 10700 kHz
  • Tuned circuits
  • 9 FM circuit(s)
  • Wave bands
  • FM Broadcast Band Only
  • Power type and voltage
  • Powered by external power supply or a main unit.
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: UKW-Vorsatz-Super Sonata UVS54 - Niemann & Co., Werner
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 190 x 120 x 125 mm / 7.5 x 4.7 x 4.9 inch
  • Notes
  • UKW-Vorsatzsuper und Einbauvariante mit ZF 10,7 MHz. Spätere Variante auch mit 2 Ge-Dioden statt EAA91 und Pressstoff-Gehäuse.
  • Net weight (2.2 lb = 1 kg)
  • 0.9 kg / 1 lb 15.7 oz (1.982 lb)
  • External source of data
  • E. Erb 3-907007-36-0
  • Source of data
  • Radiokatalog Band 2, Ernst Erb
  • Literature/Schematics (1)

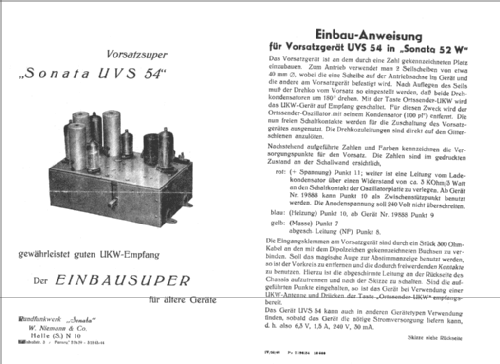

  • -- Original-techn. papers.
