Amplifier 15W PA with 6SJ7 Pre Amp

Amplifier 15W PA with 6SJ7 Pre Amp ; Nomis Sound (ID = 2400911) Ampl/Mixer Amplifier 15W PA with 6SJ7 Pre Amp ; Nomis Sound (ID = 2400913) Ampl/Mixer
Amplifier 15W PA with 6SJ7 Pre Amp ; Nomis Sound (ID = 2400912) Ampl/Mixer Amplifier 15W PA with 6SJ7 Pre Amp ; Nomis Sound (ID = 2400914) Ampl/Mixer
Use red slider bar for more.
Amplifier 15W PA with 6SJ7 Pre Amp ; Nomis Sound (ID = 2400911) Ampl/Mixer
Nomis Sound: Amplifier 15W PA with 6SJ7 Pre Amp [Ampl/Mixer] ID = 2400911 1090x768
Select picture or schematic to display from thumbnails on the right and click for download.
For model Amplifier 15W PA with 6SJ7 Pre Amp, Nomis Sound Amplifier & Radio Co.; Adelaide, SA:

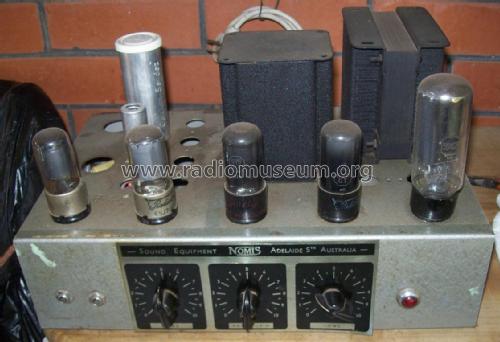

Nomis 50's Amp Front

Country:  Australia
Manufacturer / Brand:  Nomis Sound Amplifier & Radio Co.; Adelaide, SA
Year: 1955 ?? Category: Audio Amplifier or -mixer
Valves / Tubes 6: 5U4GB 6AU6 6SJ7GT 6SJ7GT 6V6GT 6V6GT
Main principle Audio-Amplification
Details
Power type and voltage Alternating Current supply (AC) / 220, 240 Volt
Loudspeaker - This model requires external speaker(s).
Power out 15 W (max.)
from Radiomuseum.org Model: Amplifier 15W PA with 6SJ7 Pre Amp - Nomis Sound Amplifier & Radio
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 360 x 260 x 230 mm / 14.2 x 10.2 x 9.1 inch
Notes

Age determined by other amplifiers with similar valve configurations with known age.

Net weight (2.2 lb = 1 kg) 11 kg / 24 lb 3.7 oz (24.229 lb)

Model page created by Joshua Boxer. See "Data change" for further contributors.
