Brünn W19

Brünn W19; Nora; Berlin (ID = 4407) Radio

Brünn W19; Nora; Berlin (ID = 352799) Radio
Brünn W19; Nora; Berlin (ID = 576) Radio Brünn W19; Nora; Berlin (ID = 44588) Radio
Brünn W19; Nora; Berlin (ID = 44589) Radio Brünn W19; Nora; Berlin (ID = 44591) Radio
Brünn W19; Nora; Berlin (ID = 847770) Radio Brünn W19; Nora; Berlin (ID = 2490498) Radio
Brünn W19; Nora; Berlin (ID = 2490499) Radio
Use red slider bar for more.
Brünn W19; Nora; Berlin (ID = 576) Radio
Nora; Berlin: Brünn W19 [Radio] ID = 576 700x456
Select picture or schematic to display from thumbnails on the right and click for download.
For model Brünn W19, Nora; Berlin

Country:  Germany
Manufacturer / Brand:  Nora; Berlin
Year: 1939/1940 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: EF12 RES164 RGN354
Main principle TRF with regeneration; 1 AF stage(s)
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110, 125, 150, 220, 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Brünn W19 - Nora; Berlin
Material Bakelite case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 530 x 290 x 280 mm / 20.9 x 11.4 x 11 inch
Net weight (2.2 lb = 1 kg) 12.5 kg / 27 lb 8.5 oz (27.533 lb)
Price in first year of sale 119.00 RM
Source of data Katalog Eltax, Berlin, 1939/40 / Radiokatalog Band 1, Ernst Erb

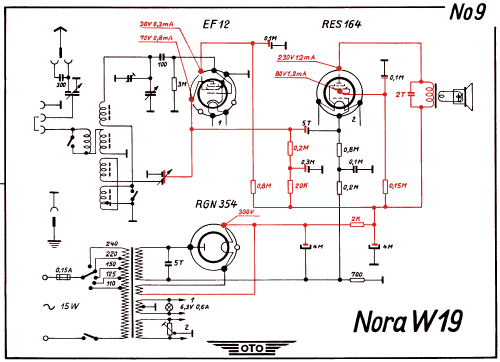

Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
Mentioned in Fortschritte der Funktechnik und ihrer Grenzgebiete (8 Bände)
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
