Fidelio L16

Fidelio L16; Nora; Berlin (ID = 1490730) Speaker-P Fidelio L16; Nora; Berlin (ID = 47669) Speaker-P
Fidelio L16; Nora; Berlin (ID = 357104) Speaker-P Fidelio L16; Nora; Berlin (ID = 357103) Speaker-P
Fidelio L16; Nora; Berlin (ID = 1384256) Speaker-P Fidelio L16; Nora; Berlin (ID = 981732) Speaker-P
Fidelio L16; Nora; Berlin (ID = 1590451) Speaker-P Fidelio L16; Nora; Berlin (ID = 1774431) Speaker-P

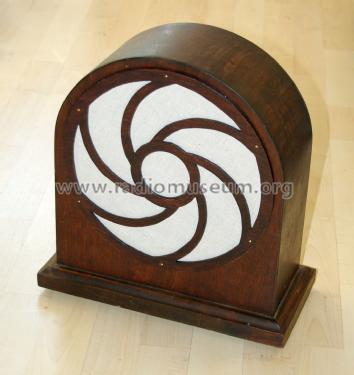

Fidelio L16; Nora; Berlin (ID = 1945372) Speaker-P Fidelio L16; Nora; Berlin (ID = 1945373) Speaker-P
Use red slider bar for more.
Fidelio L16; Nora; Berlin (ID = 1490730) Speaker-P
Nora; Berlin: Fidelio L16 [Speaker-P] ID = 1490730 933x1031
Select picture or schematic to display from thumbnails on the right and click for download.
For model Fidelio L16, Nora; Berlin:
Stoff erneuert.

Country:  Germany
Manufacturer / Brand:  Nora; Berlin
Year: 1928–1931 Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker Magnetic loudspeaker (reed) generic.
Power out
from Radiomuseum.org Model: Fidelio L16 - Nora; Berlin
Material Wooden case
Shape Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).
Dimensions (WHD) 330 x 350 x 145 mm / 13 x 13.8 x 5.7 inch
Notes Flächen-LS, einfachere Rosette als L10.
Net weight (2.2 lb = 1 kg) 1.7 kg / 3 lb 11.9 oz (3.744 lb)
Price in first year of sale 33.00 RM
Source of data Radio-Diehr, Berlin, 1928/1929 / Radiokatalog Band 1, Ernst Erb
Mentioned in Arlt's grosser Radiokatalog 1930 (p.41)
Literature/Schematics (1) Die Sendung (Nr. 35, 1929)


All listed radios etc. from Nora; Berlin
Here you find 620 models, 538 with images and 338 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Nora; Berlin: Fidelio L16
Threads: 1 | Posts: 1
Hits: 1846     Replies: 0
nora: L16; Fidelio
Konrad Birkner † 12.08.2014
08.Mar.04
  1 Maße: 330 / 350 / 145 ;

Nora; Berlin: Fidelio L16
