K3Gb 110V
Nora; Berlin
- Country
- Germany
- Manufacturer / Brand
- Nora; Berlin
- Year
- 1930/1931
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 8096
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 3
- Main principle
- TRF with regeneration; 2 AF stage(s)
- Tuned circuits
- 1 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Direct Current supply (DC) / 110 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Wooden case
- from Radiomuseum.org
- Model: K3Gb 110V - Nora; Berlin
- Dimensions (WHD)
- 350 x 210 x 160 mm / 13.8 x 8.3 x 6.3 inch
- Notes
-
kap.Rückk.
Preis ohne Röhren, zusätzlich Röhrensatz Preis: 24,- RM
- Price in first year of sale
- 120.00 RM +
- Source of data
- Kat.Radio Arlt 1931 / Radiokatalog Band 1, Ernst Erb
- Mentioned in
- Funkgeschichte der GFGF (8757)
- Literature/Schematics (1)

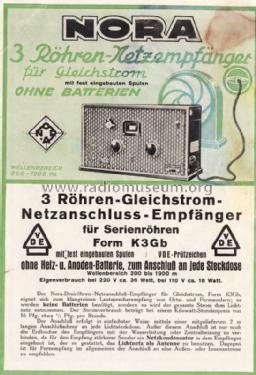

- Illustrierter Radio-Katalog 1930-31, S.17
